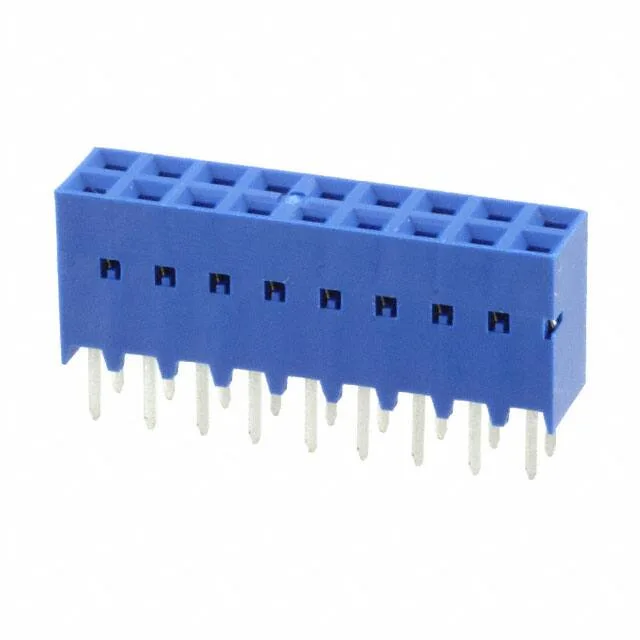

Amphenol ICC (FCI) Dubox receptacle, order code 87606-809LF, 18 positions, dual row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, through-hole, solder termination, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Gender | Female Socket |
| Mounting type | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 87606-809LF is the 18-position member of Amphenol ICC (FCI)'s Dubox receptacle line, a dual-row board-to-board socket with push-pull fastening. Through-hole solder termination, UL94 V-0 glass-filled thermoplastic housing in blue.
The pitch and row spacing are shared across the Dubox series; select the position count to match the circuit requirement.
RoHS and REACH compliance documentation is available from Amphenol ICC (FCI) on request.
