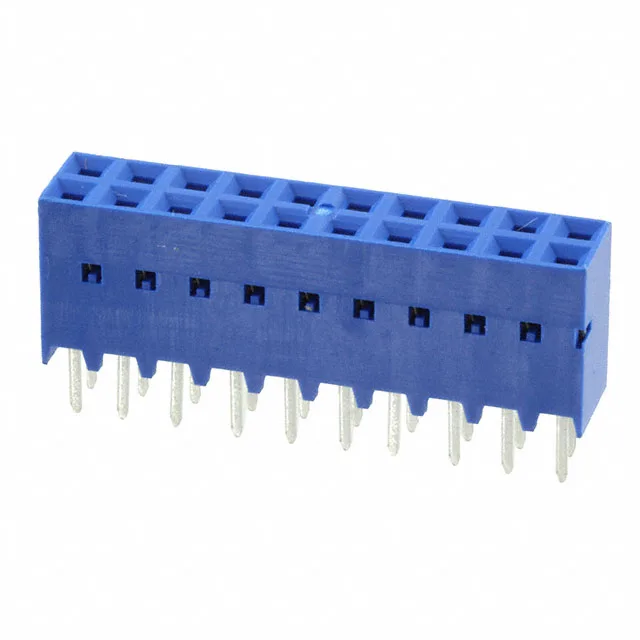

Amphenol ICC (FCI) Dubox™ 87606-810LF, 20-position dual-row through-hole receptacle, 0.100" (2.54mm) pitch, gold mating finish, tin post plating, UL94 V-0 blue thermoplastic housing
| Parameter | Value |
|---|---|
| Series | Dubox™ |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.335\" (8.51mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 0.335" (8.51mm) insulation height keeps the mated stack height within a typical 0.5" board-to-board gap. All 20 positions are loaded — no dummy pins to track. The blue insulation color is consistent across the 87606 base number, making visual verification during assembly straightforward.
RoHS compliant per.
As a board-to-board receptacle, it mates with a 0.100" pitch dual-row pin header — typically a Dubox™ series header or any standard 2.54mm square-pin header.
