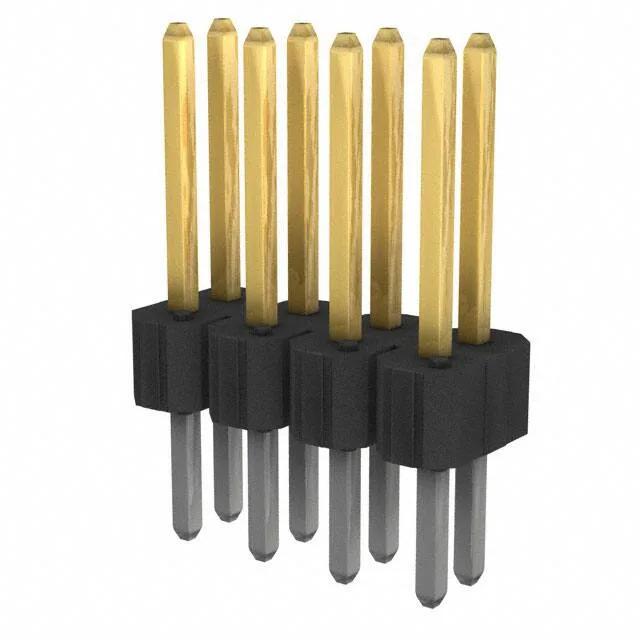

87894-108HLF — Amphenol product photo
Amphenol

Amphenol 87894-108HLF BERGSTIK® II Header, 8 Pos, 2.54mm

MPN87894-108HLF
Active

Amphenol BERGSTIK® II, 87894-108HLF, Board to Board Header, 8 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Through Hole, Gold or Gold GXT™ Mating Finish, 5A, UL94 V-0.

$0.8600Ref. price · indicative, final on quote
87894-108HLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

87894-108HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating110V
Current rating5A
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact length - post0.170\" (4.32mm)
Overall contact length0.588\" (14.94mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

It uses the standard 0.100" (2.54mm) pitch and row spacing, so it mates with any matching 0.100" pitch receptacle.

Three same-series peers — 68602-108HLF, 67997-108HLF, and 67996-108HLF — share the identical 8-position, dual-row layout, 0.100" pitch, 30.0µin gold plating, and UL94 V-0 black housing. The only difference is the overall contact length: 0.480" (12.19mm), 0.450" (11.43mm), and 0.425" (10.80mm) respectively, versus 0.588" (14.94mm) for the 87894-108HLF. That longer pin gives you more reach through the board for thicker PCB stacks or taller mating receptacles — pick the one whose post length clears your board thickness plus the mating connector's depth.

Frequently asked questions

What is the pinout and mounting type of 87894-108HLF?

It is an 8-position, dual-row unshrouded header with a 0.100" (2.54mm) pitch, mounted through-hole with solder termination. All 8 positions are loaded. The pinout follows a standard dual-row grid — mate it with a 2x4 receptacle at the same pitch.

Are there direct equivalent or replacement for 87894-108HLF?

The 68602-108HLF, 67997-108HLF, and 67996-108HLF are same-series peers with identical pitch, plating, and position count — the only difference is overall contact length. They are functional alternatives if the shorter post clears your board and mating connector stack-up.
