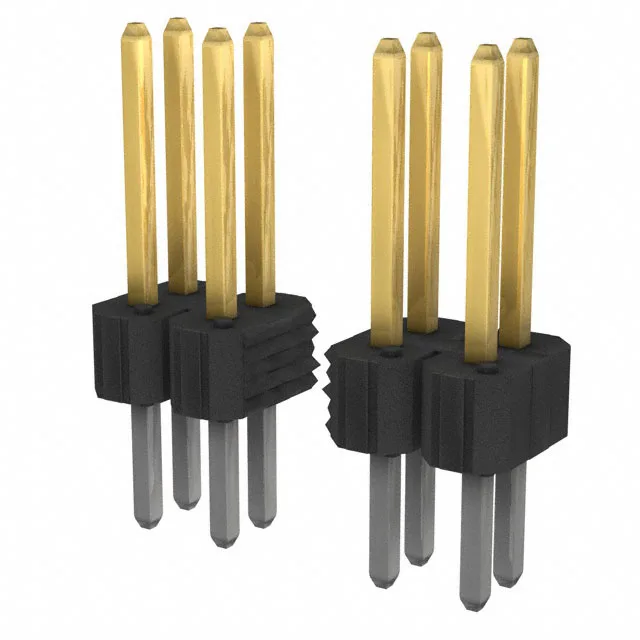

Amphenol ICC (FCI) BERGSTIK® II header, order code 87894-122HLF, 22 positions, dual row, 0.100" (2.54mm) pitch, unshrouded, through-hole, solder termination, male pin, gold or gold GXT™ mating finish, UL94 V-0.
Amphenol ICC (FCI) BERGSTIK® II header, order code 87894-122HLF, 22 positions, dual row, 0.100" (2.54mm) pitch, unshrouded, through-hole, solder termination, male pin, gold or gold GXT™ mating finish, UL94 V-0.
$0.8372Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 22 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.170\" (4.32mm) |
| Overall contact length | 0.588\" (14.94mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is 87894-122HLF's listed style on this Pin Headers, Sockets & Housings line?
The style is Board to Board.
What compliance documentation does Amphenol ICC (FCI) provide for 87894-122HLF (RoHS, REACH, UL, IEC)?
RoHS and REACH compliance documentation is available from Amphenol ICC (FCI) upon request.
