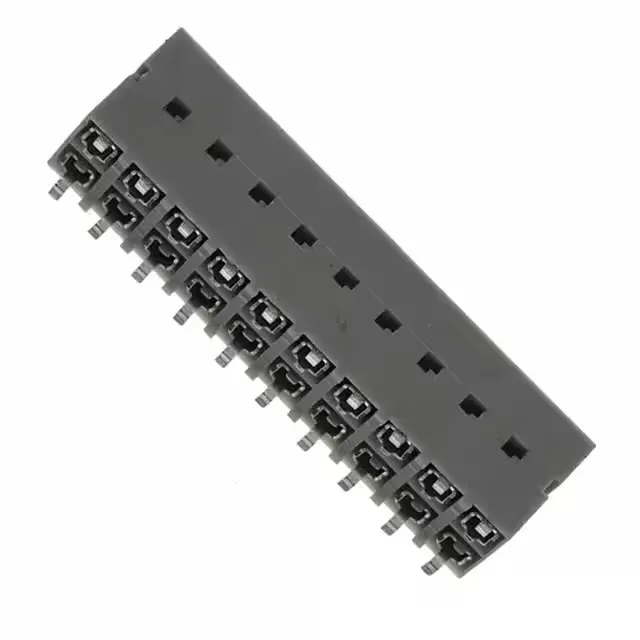

89898-310LF — Amphenol product photo
Amphenol

89898-310LF Amphenol ICC (FCI) Dubox™ 20-Position Receptacle

MPN89898-310LF
Active

Amphenol ICC (FCI) Dubox™ series, 89898-310LF — 20-position, 2-row, surface-mount female socket receptacle, 0.100" (2.54 mm) pitch, 30.0 µin gold mating finish, 10.81 mm mated stack height, UL94 V-0 gray thermoplastic housing.

$4.1400Ref. price · indicative, final on quote
89898-310LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

89898-310LF Technical Specifications
ParameterValue
SeriesDubox™
GenderFemale Socket
Mounting typeSurface Mount
Connector typeReceptacle, Bottom or Top Entry
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorGray
Insulation height0.275\" (6.99mm)
Insulation materialThermoplastic, Glass Filled
Mated stacking heights10.81mm
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBox
TerminationSolder
ApplicationsAutomotive, General Purpose, Industrial, Telecommunications
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

20-Position Dubox™ SMT Receptacle — Fit and Footprint

Stack Height and Board-Level Fit

The 10.81 mm mated stack height is fixed by the receptacle's insulation height (0.275" / 6.99 mm) and the mating header's profile. This dimension is critical for the board-to-board spacing — if your design calls for a different gap, the Dubox™ series offers other stack heights within the same footprint. The connector accepts bottom or top entry, meaning the receptacle can be mounted on either side of the PCB and still mate with a header from above or below, depending on the board stack-up.

Where It Fits — Typical Applications

Frequently asked questions

Where can I buy 89898-310LF and what is the lead time?

The 89898-310LF is sourced per RFQ through our independent distribution network. Submit an RFQ with your target quantity and we will return a firm lead time and current pricing.
