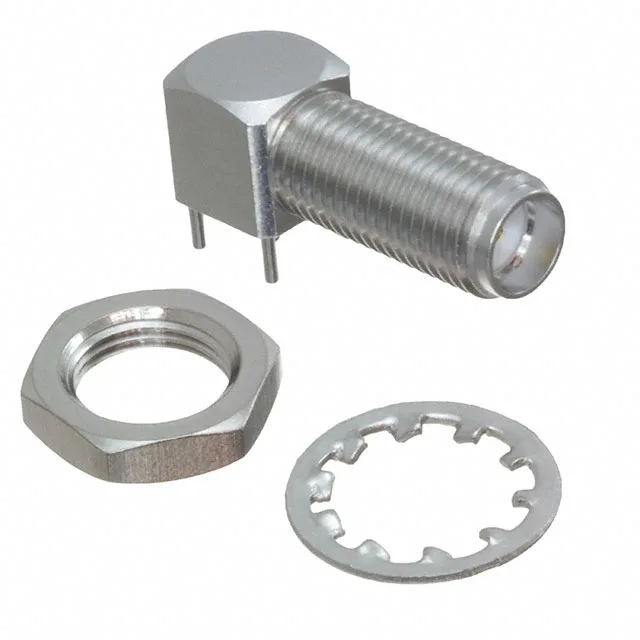

901-10138 — Amphenol product photo
Amphenol

Amphenol RF 901-10138 SMA Jack, 12.4 GHz, Bulkhead

MPN901-10138
Active

Amphenol RF SMA jack, female socket, 50 Ohm, 12.4 GHz, panel mount bulkhead, right-angle solder termination, gold-plated beryllium copper centre contact, includes lockwasher and nuts.

$11.6700Ref. price · indicative, final on quote
901-10138 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

901-10138 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole, Right Angle
Connector typeJack, Female Socket
Fastening typeThreaded
Frequency - max12.4 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes4 pcs - 1 Connector, 1 Lockwasher, 2 Nuts
Impedance50Ohm
Body finishWhite Bronze
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

SMA Bulkhead Jack with Right-Angle PCB Tail

The 901-10138: It mounts through a panel bulkhead using the front-side nut and a lockwasher — the hardware ships with the connector, so no separate nut order. Termination is a right-angle solder tail for the PCB, with the shield soldered to the body.

Mounting and Hardware Included

The kit includes the lockwasher and two nuts, so the panel-side hardware is covered in one BOM line. The threaded fastening type is standard for SMA; the thread size is the SMA industry standard (1/4-36 UNS-2A on the coupling nut, with the body thread being the standard SMA panel-mount thread).

500-Cycle Mating Life and Temperature Range

The white bronze body finish on the brass shell provides a corrosion-resistant surface that holds up in humid or salt-spray environments.

Frequently asked questions

Where can I buy 901-10138 available via RFQ confirmation?

The 901-10138 is an active Amphenol RF part sourced to order through independent distribution. Submit an RFQ for current availability and pricing — stock levels and lead time are confirmed at quote time.

What is the thread type of 901-10138?

The 901-10138 uses threaded fastening, standard for SMA connectors. The coupling nut thread is the SMA industry standard 1/4-36 UNS-2A; the panel-mount body thread is the standard SMA bulkhead thread.

Is 901-10138 a standard SMA connector?

It conforms to the SMA interface standard and mates with any standard SMA plug.

Does 901-10138 include all necessary hardware?

Yes, the 901-10138 ships with 4 pieces: the connector body, one lockwasher, and two nuts. The front-side nut and lockwasher are included for panel mounting.
