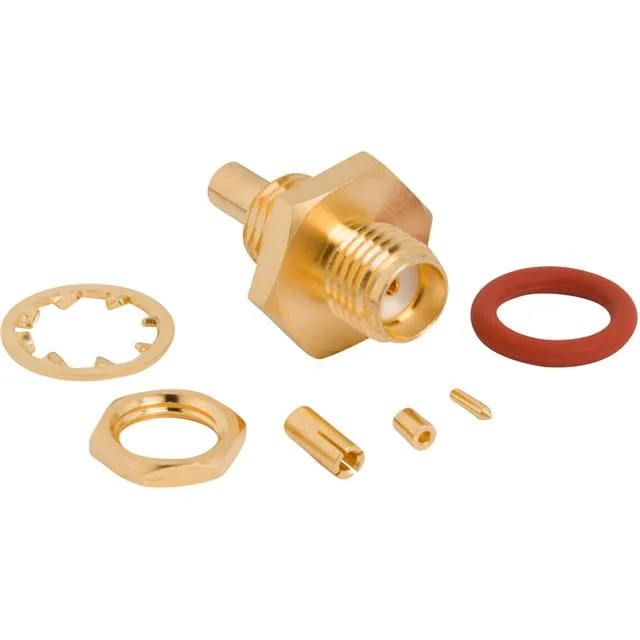

901-10754 — Amphenol product photo
Amphenol

901-10754 Amphenol RF SMA Jack, 50 Ohm, 6 GHz, Bulkhead

MPN901-10754
Active

Amphenol RF SMA jack, female socket, 50 Ohms, DC to 6 GHz, bulkhead front-side nut mount, crimp shield, solder center contact, for 1.13mm coaxial cable, gold body, 500 mating cycles.

$14.5500Ref. price · indicative, final on quote
901-10754 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

901-10754 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating335 V
Frequency - max6 GHz
Mounting featureBulkhead - Front Side Nut
Cable group1.13mm Coaxial Cable
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBag
Impedance50 Ohms
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

It terminates 1.13mm coaxial cable with a crimp shield and solder center contact. Rated to 6 GHz with a PTFE dielectric and gold-plated brass body, this connector suits RF applications where a compact, threaded, vibration-resistant interface is needed — think antenna feeds, test points, or panel pass-throughs in instrumentation and wireless infrastructure.

The 6 GHz upper frequency covers common bands like 2.4/5 GHz Wi-Fi, GPS /L2, and ISM applications, but it won't support full SMA bandwidth to 18 GHz. The crimp shield termination is field-repairable with a standard hex crimp tool — you can re-terminate a damaged cable end on site without replacing the whole harness. The solder center pin requires a soldering iron; plan for that in the assembly workflow.

Frequently asked questions

Where can I buy 901-10754 and what is the price?

Price and availability are confirmed at quote time — submit an RFQ for current pricing and lead time.

What is the impedance of 901-10754?

The impedance is 50 Ohms, standard for SMA connectors and most RF systems.

What cable does 901-10754 work with?

It is designed for 1.13mm coaxial cable. The shield is crimped and the center contact is soldered.

Is 901-10754 a male or female connector?

It is a jack with a female socket (center contact is a socket), so it mates with an SMA plug that has a male pin.

What are alternatives to 901-10754?

The 901-10796 is a similar SMA jack for 0.81mm cable rated to 7.1 GHz. The 901-10768 and 901-10786 are RP-SMA plugs and are not direct replacements.
