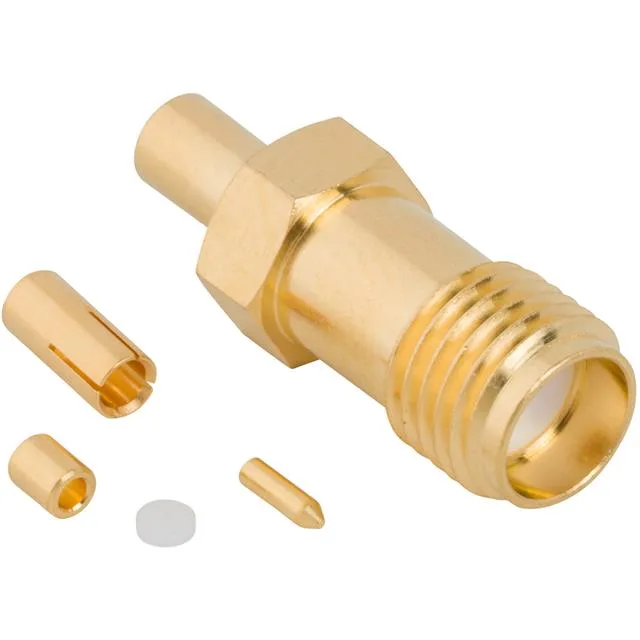

901-10764 — Amphenol product photo
Amphenol

Amphenol RF 901-10764 SMA Jack, 50 Ohm, 6 GHz, Female Socket

MPN901-10764
Active

Amphenol RF SMA jack, female socket, 50 Ohm, 6 GHz, 1 port, free-hanging, solder contact, crimp shield, gold body, 500 mating cycles.

$11.0300Ref. price · indicative, final on quote
901-10764 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

901-10764 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating166 V
Frequency - max6 GHz
Cable group1.37mm Coaxial Cable
Operating temperature-65°C~165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBag
Impedance50Ohm
Body finishGold
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

RF Interconnect Field Note

The 901-10764: It's a threaded, free-hanging (in-line) connector with a 50 Ohm impedance and a frequency ceiling of 6 GHz. The gold-plated brass body and beryllium copper centre contact, gold-plated, give it the corrosion resistance and conductivity needed for repeated field connections. Rated for 500 mating cycles, it's built for test equipment, antenna feeds, and instrumentation where the connector gets swapped more than once.

Termination and Cable Fit

The centre contact is soldered; the shield is crimped.

Frequently asked questions

What is the 901-10764 connector type?

It's an SMA jack, female socket, for 1.37 mm coaxial cable. Threaded coupling, 50 Ohm impedance, rated to 6 GHz.

What cable is compatible with 901-10764?

It's designed for 1.37 mm coaxial cable. The centre contact solders, the shield crimps — works with standard flexible or semi-rigid coax of that diameter.

Where to buy 901-10764?

Availability and pricing confirmed at quote time.
