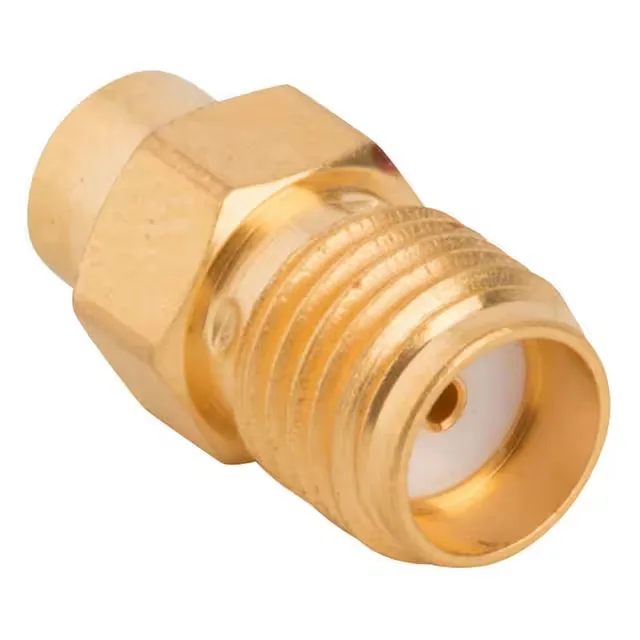

Amphenol RF SMA jack, 50 Ohm, 18 GHz, RG-402 (.141" Semi Rigid), solder termination, gold body, 500 mating cycles, -65°C to 165°C.
| Parameter | Value |
|---|---|
| Mounting type | Free Hanging (In-Line) |
| Connector type | Jack, Female Socket |
| Fastening type | Threaded |
| Frequency - max | 18 GHz |
| Cable group | RG-402 (.141\" Semi Rigid) |
| Operating temperature | -65°C~165°C |
| Body material | Stainless Steel |
| Housing color | Gold |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Beryllium Copper |
| Package | Bulk |
| Impedance | 50Ohm |
| Body finish | Gold |
| Mating cycles | 500 |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
The 901-9704: The gold-plated stainless steel body gives it corrosion resistance and a consistent mating surface for the threaded coupling nut.
The cable group is RG-402 (.141" semi-rigid). The 500 mating cycles rating suits test-bench reconnection or field-service swap-out.
The 901-9704 is designed for RG-402 (.141" semi-rigid) cable. That is the standard 0.141-inch-diameter semi-rigid coax used in microwave and RF assemblies.
The 901-9704 is a 50 Ohm SMA jack, which is the standard impedance for the SMA interface and matches the majority of RF test and communications equipment.
