Amphenol ICC (FCI) Minitek® 2.00mm receptacle, bottom entry, order code 91596-106, 6 positions, dual row, 0.079" (2.00mm) pitch, 1 A, 200 V, gold mating contacts, beryllium copper, surface-mount, solder termination.

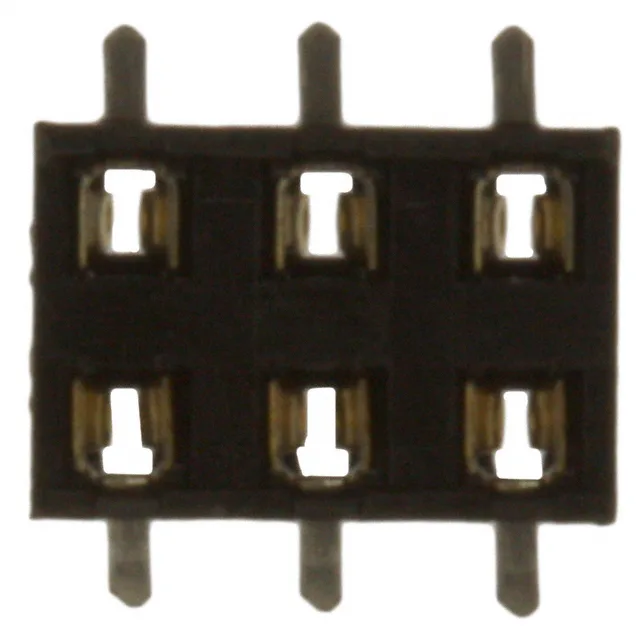

Amphenol ICC (FCI) 91596-106 Minitek 2.00mm Receptacle
MPN91596-106
Obsolete
Amphenol ICC (FCI) Minitek® 2.00mm receptacle, bottom entry, order code 91596-106, 6 positions, dual row, 0.079" (2.00mm) pitch, 1 A, 200 V, gold mating contacts, beryllium copper, surface-mount, solder termination.
$1.0600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Female Socket |
| Mounting | Surface Mount |
| Connector type | Receptacle, Bottom Entry |
| Fastening type | Push-Pull |
| Voltage rating | 200V |
| Current rating | 1A |
| Operating temperature | -55°C~125°C |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.091\" (2.30mm) |
| Insulation material | Plastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the style of the 91596-106?
The listed style is Board to Board or Cable.
