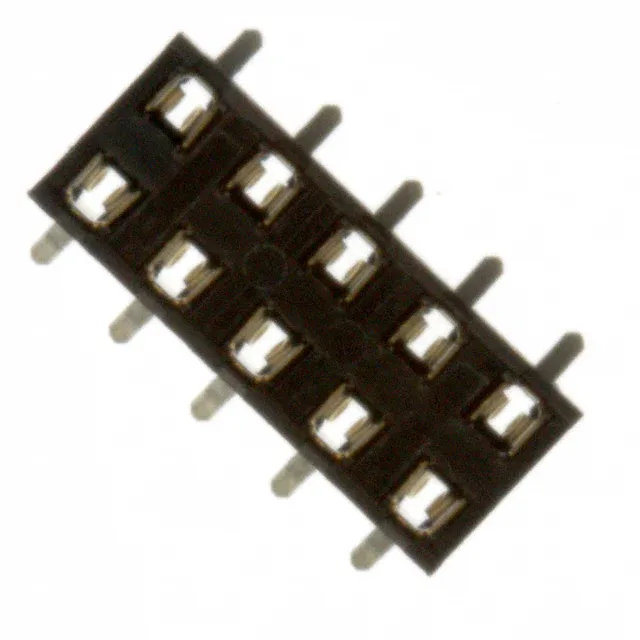

91596-110LF — Amphenol product photo
Amphenol

91596-110LF Amphenol ICC (FCI) Minitek 2.00mm 10-Pin SMT

MPN91596-110LF
Active

Amphenol ICC (FCI) Minitek® 2.00mm receptacle, 10 positions, 2-row, 0.079" (2.00mm) pitch, SMT, gold mating finish, 1 A, 200 V, UL94 V-0.

$2.4200Ref. price · indicative, final on quote
91596-110LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

91596-110LF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderFemale Socket
Mounting typeSurface Mount
Connector typeReceptacle, Bottom Entry
Fastening typePush-Pull
Voltage rating200V
Current rating1A
Operating temperature-55°C ~ 125°C
Contact materialBeryllium Copper
Insulation colorBlack
Insulation height0.091\" (2.30mm)
Insulation materialPlastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions10
Row spacing - mating0.079\" (2.00mm)
Contact finish - postGold
Contact finish - matingGold
Contact finish thickness - postFlash
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board fit and signal path

The 91596-110LF: The 2.00mm pitch and 0.079" row spacing set a compact footprint for a 10-position, dual-row receptacle — the board layout needs a 2.00mm grid for both rows, with the SMT pads placed on a 0.079" (2.00mm) pitch.

SMT assembly and board-edge routing

Surface-mount termination with a bottom-entry design — the receptacle sits flush on the board, with contacts accessible from the bottom for mating with a pin header from below. Push-pull fastening means the connector is unmated without a latch — suitable for applications where the board pair is accessed infrequently and the cable strain is low.

Frequently asked questions

What is the pitch of 91596-110LF?

The mating pitch is 0.079" (2.00mm), and the row spacing is also 0.079" (2.00mm).
