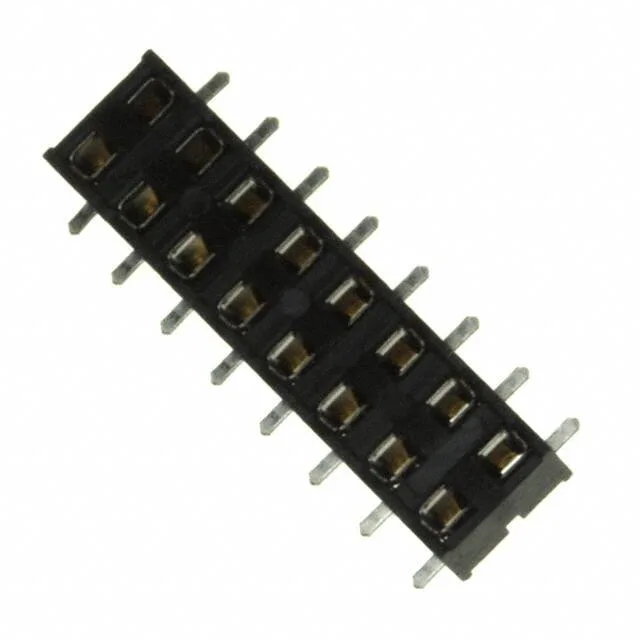

16-position bottom-entry receptacle in the Minitek 2.00mm line
The 91596-116LF is the 16-circuit member of the Amphenol ICC (FCI) Minitek 2.00mm receptacle series, a dual-row board-to-board or cable connector with 0.079" (2.00mm) pitch.
Amphenol ICC (FCI) Minitek® 2.00mm receptacle, order code 91596-116LF, 16 positions, dual row, 0.079" (2.00mm) pitch, 1 A, 200 V, gold-plated mating contacts, surface-mount bottom entry, solder termination.
$2.1604Ref. price · indicative, final on quote
StockIn Stock (20)
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Gender | Female Socket |
| Mounting type | Surface Mount |
| Connector type | Receptacle, Bottom Entry |
| Fastening type | Push-Pull |
| Voltage rating | 200V |
| Current rating | 1A |
| Operating temperature | -55°C~125°C |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.091\" (2.30mm) |
| Insulation material | Plastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating style of the 91596-116LF?
The 91596-116LF is a Board to Board or Cable receptacle with a push-pull fastening system.
