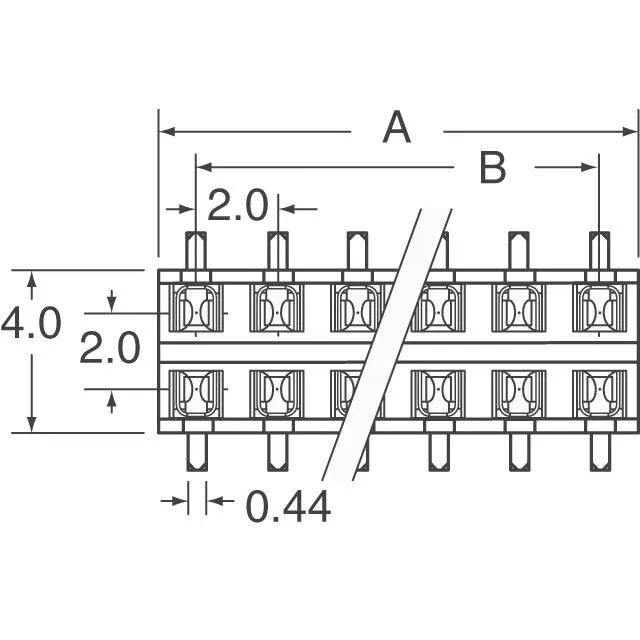

Amphenol ICC (FCI) Minitek® 2.00mm receptacle, 20 positions, dual-row, 0.079" (2.00 mm) pitch, surface-mount bottom-entry, gold mating finish, 1 A, 200 V, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Gender | Female Socket |
| Mounting type | Surface Mount |
| Connector type | Receptacle, Bottom Entry |
| Fastening type | Push-Pull |
| Voltage rating | 200V |
| Current rating | 1A |
| Operating temperature | -55°C~125°C |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.091\" (2.30mm) |
| Insulation material | Plastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 20 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 91596-120LF: SMT termination suits reflow assembly and keeps the board-side profile low at 0.091" (2.30 mm) insulation height. The push-pull fastening type provides a positive but tool-less mate and unmate — no secondary latch, so the joint relies on the header's retention features for vibration resistance.
RoHS compliant.
The 20-position sits in the middle of the range, matching a 20-pin header on the same footprint.
This receptacle mates with a 20-position, 2.00 mm pitch pin header from the Minitek® 2.00mm series. The header must have the same dual-row layout and 0.079" row spacing.
Yes — RoHS compliant per the lifecycle record.
