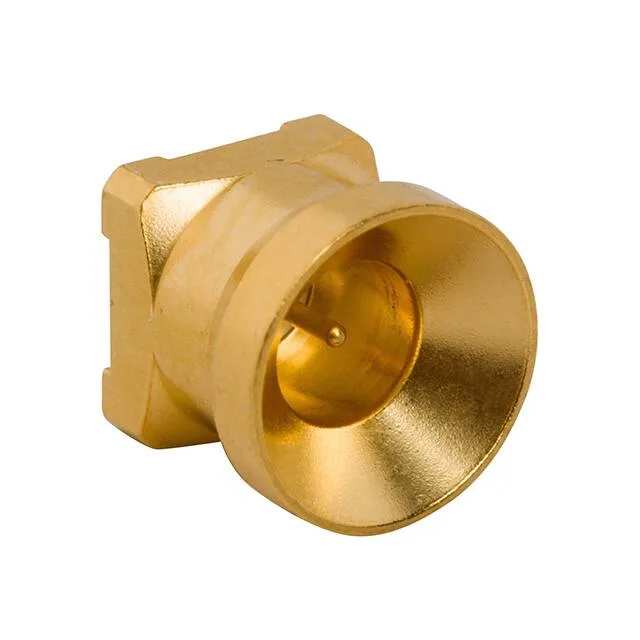

920-501J-53P HD-EFI Jack, 50 Ohm, 6 GHz, SMT

MPN920-501J-53P
Active

Amphenol RF HD-EFI jack, female socket, 920-501J-53P, 50 Ohm, 6 GHz max frequency, 0.1 dB insertion loss, push-pull fastening, surface mount, gold-plated center contact, nickel body, -45°C to 125°C operating range.

$5.1000Ref. price · indicative, final on quote
920-501J-53P datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

920-501J-53P Technical Specifications
ParameterValue
SeriesHD-EFI
Mounting typeSurface Mount
Connector typeJack, Female Socket
Fastening typePush-Pull
Frequency - max6 GHz
Operating temperature-45°C~125°C
Body materialBrass
Housing colorGold
Dielectric materialLiquid Crystal Polymer (LCP)
Center contact materialBrass
PackageTray
FeaturesSmooth Bore
Impedance50Ohm
Body finishNickel
Mating cycles200
Insertion loss0.1dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

HD-EFI Jack for 6 GHz Signal Paths

The 920-501J-53P: The gold-plated center contact and nickel-plated brass body handle the 200-cycle mating life without signal degradation.

What the 6 GHz and 0.1 dB Ratings Mean for Your RF Link

6 GHz is the practical ceiling for this interface — above that the insertion loss climbs and the VSWR degrades. The 0.1 dB loss figure is measured at lower frequencies; at 6 GHz the real loss will be higher but still within the design budget for short board-to-board or board-to-cable runs. The 200-cycle rating means this jack is fine for a production assembly that sees occasional field service, but not for a test port that gets mated daily.

Surface-Mount Termination and Push-Pull Mating

The SMT termination (contact and shield both reflow-soldered) eliminates through-hole stubs. The push-pull fastening locks with a simple axial push.

No last-time-buy or phase-out notice is on record.
