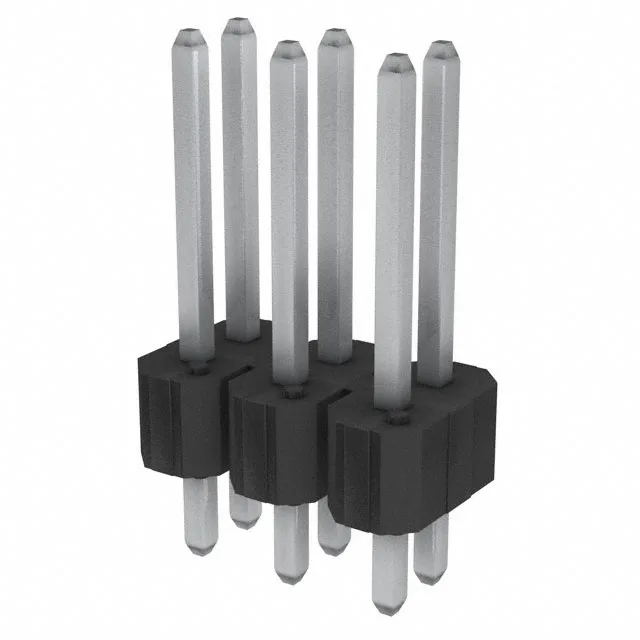

Amphenol ICC (FCI) BERGSTIK® II header, order code 92417-406HLF, 6 positions, dual row, 0.100" (2.54mm) pitch, 5 A, 110 V, tin-plated mating contacts, through-hole, solder termination.
Amphenol ICC (FCI) BERGSTIK® II header, order code 92417-406HLF, 6 positions, dual row, 0.100" (2.54mm) pitch, 5 A, 110 V, tin-plated mating contacts, through-hole, solder termination.
$1.3900Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 5A |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.530\" (13.46mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What compliance documentation does Amphenol ICC (FCI) provide for the 92417-406HLF?
RoHS and REACH compliance documentation is available from the manufacturer.
