BERGSTIK II 0.100" Dual-Row Header — 8 Positions, Unshrouded

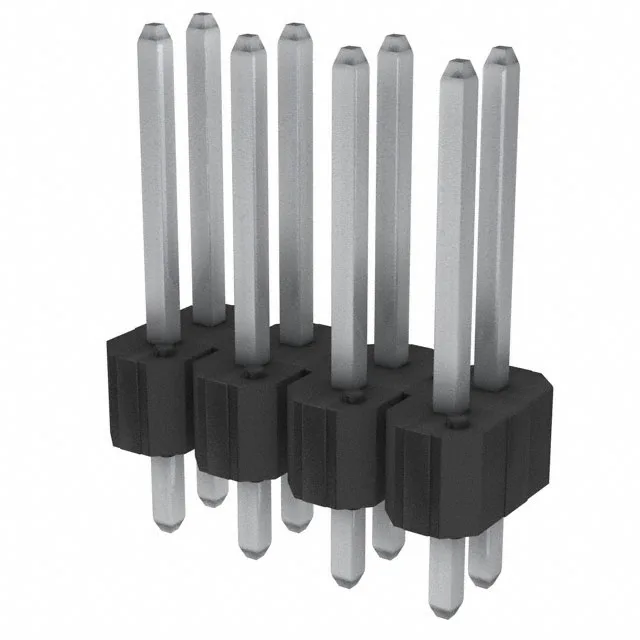

The Amphenol 92417-408HLF is an 8-position, dual-row male pin header from the BERGSTIK® II series, on the standard 0.100" (2.54 mm) pitch. It is an unshrouded, through-hole solder-terminated header with tin-plated phosphor bronze contacts rated at 5 A per circuit and 110 V. The UL94 V-0 black housing and push-pull fastening make it a straightforward board-to-board interconnect for low-cost, signal-level applications where the mating receptacle is aligned by the board layout.
What the Key Ratings Mean for Fit
The 0.100" (2.54 mm) pitch and matching row spacing land on a standard grid — any board already routed for legacy 0.100" headers accepts this part without footprint changes. The 8 positions in two rows give a compact 4×2 pin array, common for low-pin-count I/O or control signals. The 5 A per-contact rating is typical for signal-level power; the limiting factor is the tin plating on the mating surface, which supports a few dozen mating cycles before fretting corrosion sets in — fine for one-time or infrequent mating, not for repeated field servicing. The 110 V rating keeps it on low-voltage DC or signal rails, not mains or high-voltage bus work.
