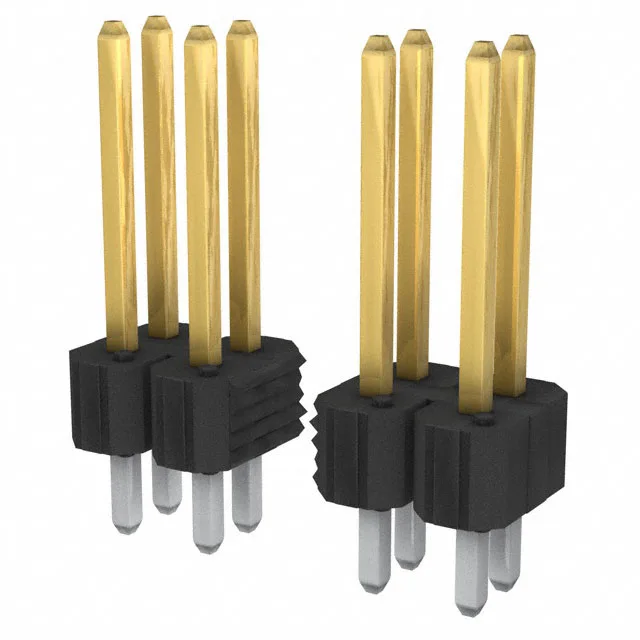

Amphenol 93254-156HLF
MPN93254-156HLF
Obsolete
$4.1909Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 56 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.563\" (14.30mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.353\" (8.97mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
