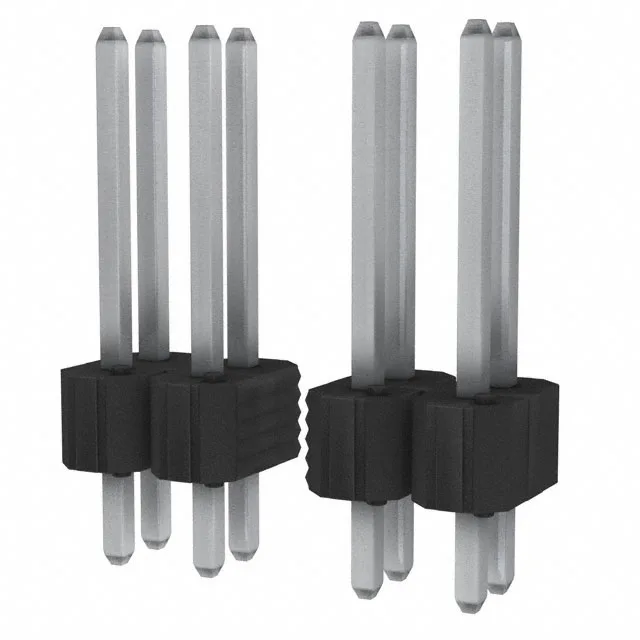

93254-426HLF — Amphenol product photo
Amphenol

93254-426HLF Amphenol BERGSTIK II Header, 26 Pos, 0.100"

MPN93254-426HLF
Obsolete

Amphenol BERGSTIK® II header, order code 93254-426HLF, 26 positions, dual row, 0.100" (2.54 mm) pitch, tin-plated mating contacts, through-hole, solder termination, unshrouded, push-pull fastening.

$0.4597Ref. price · indicative, final on quote
93254-426HLF datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

93254-426HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Overall contact length0.563\" (14.30mm)
Contact finish - matingTin
Contact length - mating0.353\" (8.97mm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Board-to-board header, 26 positions, 0.100" pitch

The 93254-426HLF is the 26-position member of Amphenol's BERGSTIK® II unshrouded header line. Tin-plated square pins on a 0.100" pitch, dual-row layout, through-hole solder termination — the unshrouded push-pull interface mates with standard 0.100" pitch receptacles.

Obsolete — no direct successor on record

The 93254-426HLF carries an Obsolete product status from the manufacturer. No official successor or pin-compatible replacement has been published by Amphenol for this order code.

Frequently asked questions

What compliance documentation does Amphenol provide for 93254-426HLF?

The material flammability rating is UL94 V-0. Contact plating and base material are listed in the spec table.
