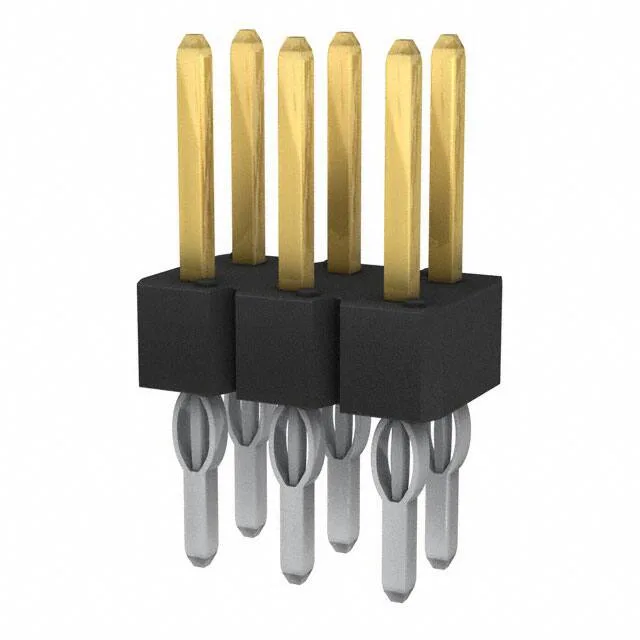

The Amphenol 93690-103-06LF is a 6-position unshrouded breakaway header from the BergStik series, pitched at 0.100" (2.54 mm) in a dual-row layout. It supports board-to-board or cable interconnect duty, with male square pins terminated through-hole by press-fit or solder. The mating finish is gold GXT at 30.0 µin (0.76 µm), paired with tin-plated posts; the housing is rated UL94 V-0 and carries a 110 V voltage rating.
The overall contact length of 0.505" (12.83 mm) splits into a 0.224" mating tail and a 0.177" post for the board. The through-hole termination accepts press-fit assembly, which avoids solder wicking into the contact interface and makes rework cleaner than a soldered-only joint.
