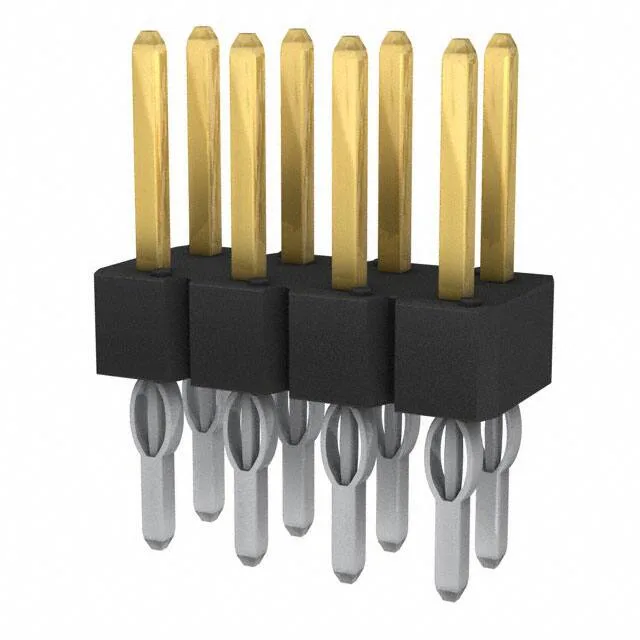

Rated 5A per contact at 110V, with gold GXT™ plating at 30.0µin (0.76µm) on the mating surface and a tin post finish. The unshrouded, push-pull design means it snaps into a matching receptacle or can be left as a free-standing pin header for test points or programming headers.
Through-hole mounting with a dual termination option — press-fit or solder. The press-fit tail lets you assemble without wave solder in a backplane or high-reliability build where rework matters; the same footprint works for a standard solder wave if your line isn't set up for press-fit. Overall contact length is 0.505" (12.83mm), with a 0.177" (4.50mm) post length below the board. The insulation height sits at 0.100" (2.54mm) above the board surface — low profile enough for tight card-to-card spacing.
Plating and environment
UL94 V-0 thermoplastic housing, black. Rated for board-to-board or cable interconnect duty — the unshrouded pins let you route ribbon cable or discrete wires to a mating crimp housing, or plug directly into a female header on another board.
