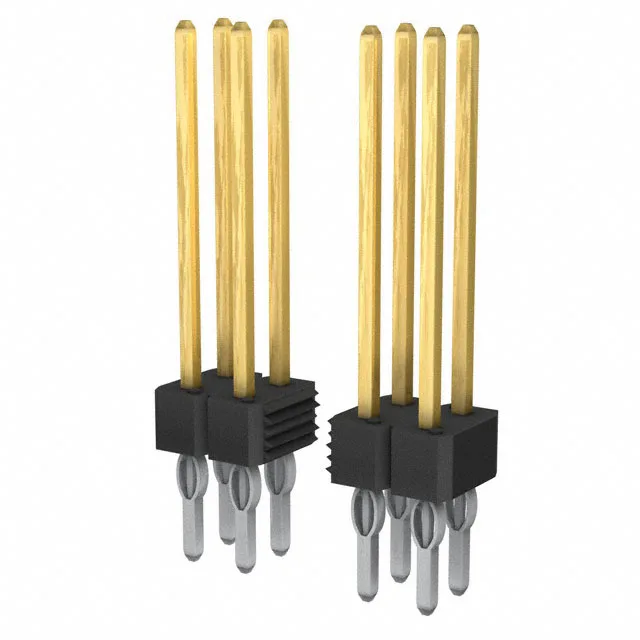

Amphenol FCI 93690-104-36LF BERGSTIK Header, 36 Pos

MPN93690-104-36LF
Active

Amphenol FCI BERGSTIK 93690-104-36LF, dual-row unshrouded breakaway header, 36 positions at 0.100" (2.54 mm) pitch, male pin, push-pull, through-hole press-fit/solder, 5 A, 110 V, gold GXT mating, tin post, UL94 V-0.

$2.2955Ref. price · indicative, final on quote
93690-104-36LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

93690-104-36LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Voltage rating110V
Current rating5A
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBag
ShroudingUnshrouded
TerminationPress-Fit, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions36
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.187\" (4.75mm)
Overall contact length0.872\" (22.15mm)
Contact finish - matingGold, GXT™
Contact length - mating0.583\" (14.81mm)
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

BERGSTIK Breakaway Header, 36 Positions

The Amphenol FCI 93690-104-36LF is a dual-row unshrouded breakaway header from the BERGSTIK series, offering 36 positions on a standard 0.100-inch (2.54 mm) pitch. Rated 5 A per circuit at 110 V, with a gold GXT plating on the mating surface (30.0 µin) and tin on the solder post (39.4 µin). The housing is black thermoplastic rated UL94 V-0. Termination is through-hole, supporting both press-fit and solder attachment. The press-fit option suits backplane or solderless assembly where rework or high-reliability is a concern; the solder tail (0.187-inch post length) works for standard wave-solder lines.

Plating and Duty Cycle

The tin-plated post (39.4 µin) is standard for solderability. For power delivery above a few amps per pin, derate or use multiple parallel pins.

Frequently asked questions

What is the pitch of 93690-104-36LF?

The mating pitch is 0.100 inches (2.54 mm), with a row spacing of 0.100 inches (2.54 mm) — standard breadboard-compatible grid.

Is 93690-104-36LF shrouded or unshrouded?

It is unshrouded, with a push-pull fastening type. The insulation height is 0.100 inches (2.54 mm) above the board.
