BERGSTIK breakaway header, 60 positions, 0.100" pitch

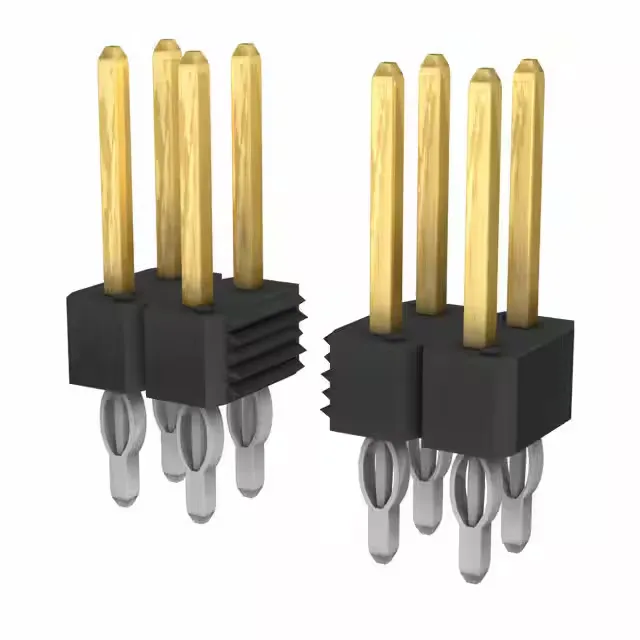

The Amphenol BERGSTIK 93690-106-60LF is a dual-row unshrouded breakaway header with 60 positions — 30 per row — on the standard 0.100" (2.54 mm) pitch.
The 5 A figure is per-contact — total current through the connector is the sum across active pins, subject to derating at elevated temperatures. The 0.100" pitch gives enough creepage for the 110 V rating while keeping the board footprint compatible with standard 0.1" grid prototyping and production layouts. The gold-on-mating, tin-on-tail split is a common choice for connectors that see occasional unmate-and-remate in service but are soldered into the board once. The header is through-hole mounted with a termination listed as both press-fit and solder. The press-fit option is useful for solderless backplane assembly where rework or field replacement is anticipated; the solder tail gives a conventional through-hole joint. The overall contact length is 0.508" (12.90 mm), with a mating length of 0.268" (6.80 mm) and a post length of 0.142" (3.60 mm) — check your board thickness and mating receptacle depth against these dimensions.
