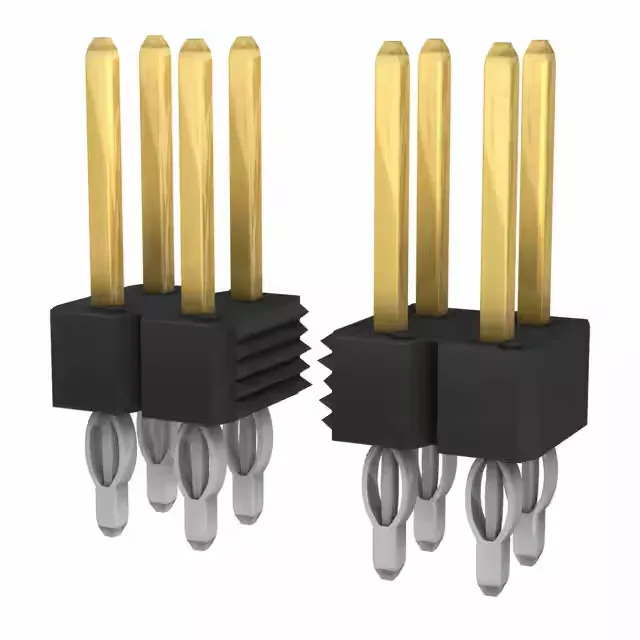

93690-107-10LF — Amphenol product photo

Amphenol FCI 93690-107-10LF BERGSTIK Header, 10 Pos

MPN93690-107-10LF
Active

Amphenol FCI BERGSTIK® 93690-107-10LF, dual-row 10-position male breakaway header, 0.100" (2.54 mm) pitch, gold GXT mating finish (30.0 µ"), tin solder posts, 5 A per contact, 110 V, through-hole press-fit/solder, UL94 V-0.

$0.6564Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

93690-107-10LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Voltage rating110V
Current rating5A
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBag
ShroudingUnshrouded
TerminationPress-Fit, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.134\" (3.40mm)
Overall contact length0.497\" (12.62mm)
Contact finish - matingGold, GXT™
Contact length - mating0.264\" (6.70mm)
Contact finish thickness - post39.4µin (1.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The Amphenol FCI 93690-107-10LF is a dual-row, 10-position male breakaway header from the BERGSTIK® series, on the standard 0.100" (2.54 mm) pitch that matches the classic breadboard footprint. It's listed for board-to-board or cable interconnect — meaning it can plug into a mating receptacle on another PCB or terminate to a ribbon cable via an IDC socket. The unshrouded, push-pull design gives you a low-profile connection without a locking ramp, which is fine for internal harnesses where the connector won't see vibration or accidental yanking.

The solder posts are tin-plated (39.4 µ") for good solderability, and the through-hole mount with press-fit option means you can either wave-solder or use a compliant-pin backplane process. The overall contact length of 0.497" (12.62 mm) breaks down into a 0.264" mating length and a 0.134" post length, which tells you the mated stack height will sit around the 0.264" mark plus the receptacle's own height.

Frequently asked questions

What is the BERGSTIK® series of the 93690-107-10LF?

It belongs to the Amphenol FCI BERGSTIK® series — a dual-row 0.100" pitch header family used for board-to-board and wire-to-cable interconnects.
