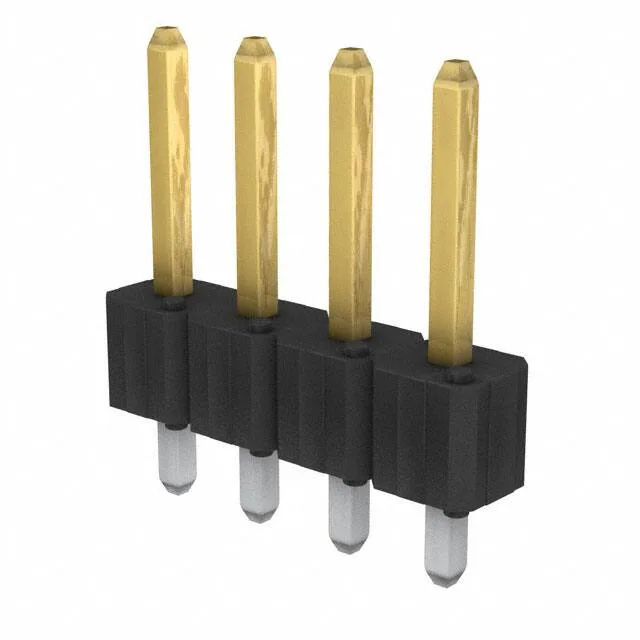

Amphenol ICC (FCI) BERGSTIK® II header, order code 93992-104HLF, 4 positions, single row, 0.100" (2.54mm) pitch, 3A, unshrouded, through-hole, solder termination, gold or GXT™ mating contact finish.
Amphenol ICC (FCI) 93992-104HLF BERGSTIK II Header, 4 Pos
MPN93992-104HLF
Active
Amphenol ICC (FCI) BERGSTIK® II header, order code 93992-104HLF, 4 positions, single row, 0.100" (2.54mm) pitch, 3A, unshrouded, through-hole, solder termination, gold or GXT™ mating contact finish.
$0.4900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
All specifications
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact length - post | 0.085\" (2.16mm) |
| Overall contact length | 0.415\" (10.54mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
