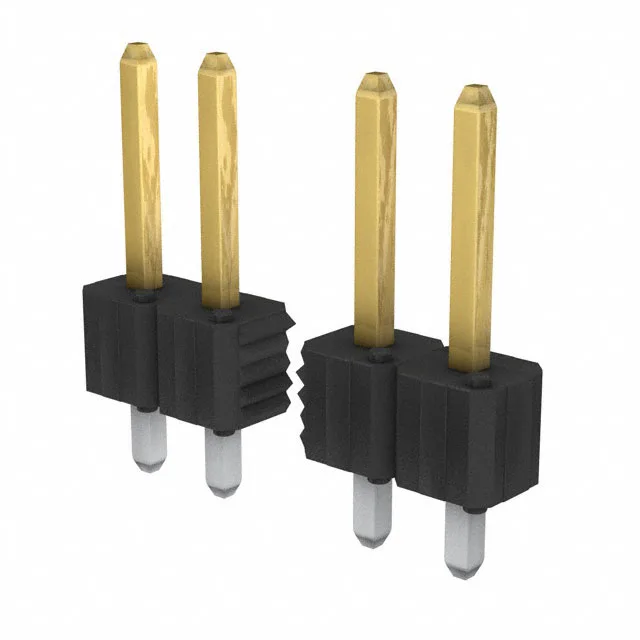

Amphenol ICC (FCI) BERGSTIK® II header, order code 93992-122HLF, 22 positions, single row, 0.100" (2.54mm) pitch, 3 A, unshrouded, through-hole, solder termination, gold or GXT™ mating contacts.
Amphenol ICC (FCI) BERGSTIK® II header, order code 93992-122HLF, 22 positions, single row, 0.100" (2.54mm) pitch, 3 A, unshrouded, through-hole, solder termination, gold or GXT™ mating contacts.
$3.7378Ref. price · indicative, final on quote
StockIn Stock (19)
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 22 |
| Contact length - post | 0.085\" (2.16mm) |
| Overall contact length | 0.415\" (10.54mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 93992-122HLF and how do I get a price?
The 93992-122HLF is available for order. Pricing is confirmed per quantity at RFQ. Contact the distributor for a quote.
