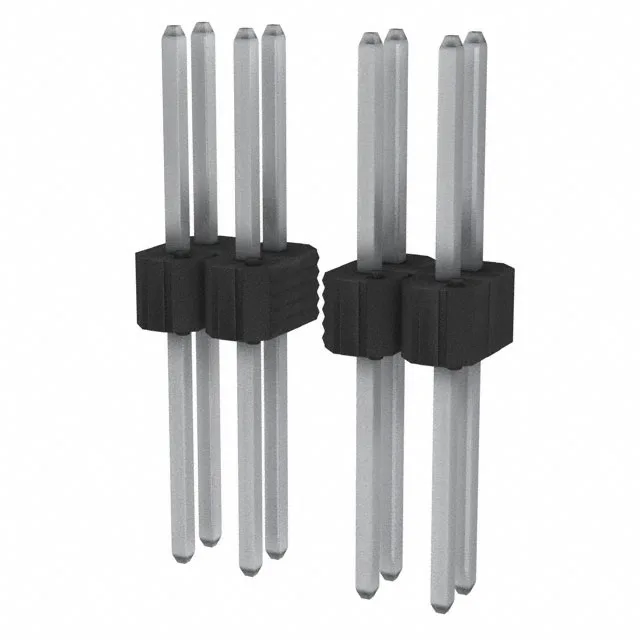

94010-450HLF — Amphenol product photo
Amphenol

94010-450HLF BERGSTIK II Header, 50-Pin, 0.100" Pitch

MPN94010-450HLF
Obsolete

Amphenol ICC (FCI) BERGSTIK® II, 94010-450HLF, Board to Board, Header, Male Pin, Solder, Through Hole, 50 Positions, 0.100" (2.54mm) Pitch, 2 Rows, Unshrouded, Tin Mating Finish, UL94 V-0

$7.0871Ref. price · indicative, final on quote
94010-450HLF datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

94010-450HLF Technical Specifications
ParameterValue
SeriesBERGSTIK® II
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions50
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.350\" (8.89mm)
Overall contact length0.756\" (19.20mm)
Contact finish - matingTin
Contact length - mating0.306\" (7.77mm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

The 94010-450HLF: It terminates through-hole with a 0.350" (8.89mm) post length, giving an overall contact length of 0.756" (19.20mm). This is a board-to-board interconnect where the header sits on one PCB and the receptacle on another, with the stack height set by the mating contact length of 0.306" (7.77mm).

Obsolete — Sourced Per RFQ

The 94010-450HLF is marked Obsolete by the manufacturer (Amphenol ICC, formerly FCI). Current availability and lead time are verified at quote time.

Tin Plating and Mating Cycle Expectation

The 100 µinch tin-on-tin mating finish is thick enough for repeated insertion and withdrawal in a controlled environment — think test fixtures, programming jigs, or internal board interconnects that see occasional service.

Frequently asked questions

Is 94010-450HLF still available?

The part is marked Obsolete by Amphenol ICC, but it is available through independent surplus channels. We source it per RFQ — confirm your quantity and we will check current availability and lead time at quote.

What is the replacement for 94010-450HLF?

No official replacement part number is listed by the manufacturer. A pin-compatible alternative would need the same 0.100" pitch, dual-row, 50 positions, unshrouded, through-hole footprint. Check the BERGSTIK II series for active gold-plated or other tin-finish variants with matching dimensions.
