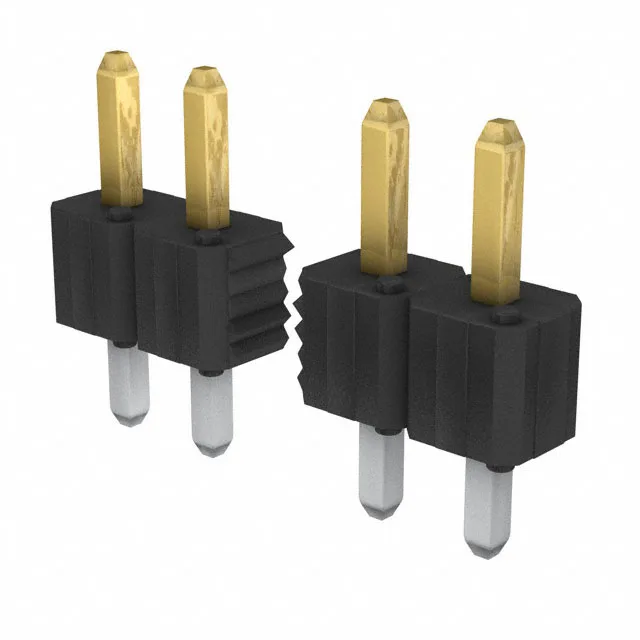

Amphenol ICC (FCI) BergStik II header, order code 94611-124HLF, 24 positions, single row, 0.100" (2.54 mm) pitch, 3 A, gold or GXT mating contact finish, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Contact length - post | 0.095\" (2.41mm) |
| Overall contact length | 0.320\" (8.13mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.125\" (3.18mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 94611-124HLF: The single-row layout at 2.54 mm pitch means the 24 positions occupy 23.4 mm of board edge — the footprint is a straight line of through-hole pads. The unshrouded design leaves the pins exposed for direct probing or for mating with a receptacle that provides its own shroud.
RoHS and REACH compliance documentation is available from the manufacturer.
