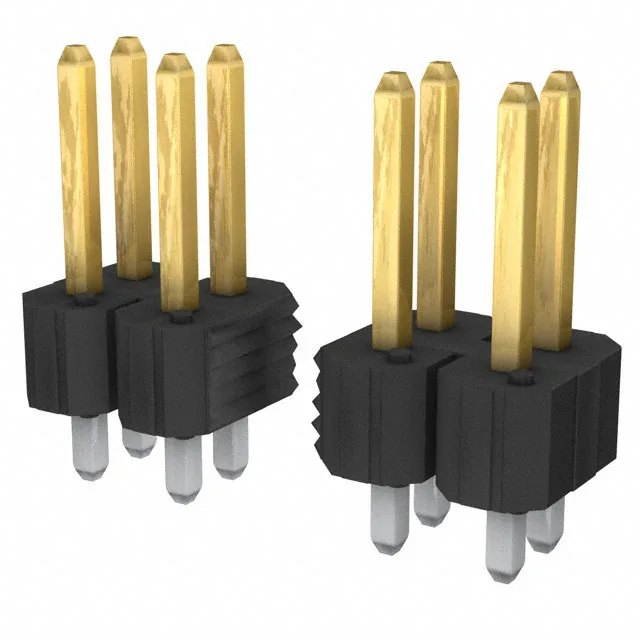

Amphenol ICC (FCI) BERGSTIK II header, order code 94654-172HLF, 72 positions, dual row, 0.100" (2.54 mm) pitch, unshrouded, through-hole, kinked pin solder termination, gold or GXT™ mating contact finish, UL94 V-0.
94654-172HLF Amphenol ICC (FCI) BERGSTIK II Header, 72-Pos
MPN94654-172HLF
Active
Amphenol ICC (FCI) BERGSTIK II header, order code 94654-172HLF, 72 positions, dual row, 0.100" (2.54 mm) pitch, unshrouded, through-hole, kinked pin solder termination, gold or GXT™ mating contact finish, UL94 V-0.
$2.9352Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
All specifications
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Kinked Pin, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 72 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.085\" (2.16mm) |
| Overall contact length | 0.415\" (10.54mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative in the BERGSTIK II series?
No same-series peer with a different position count is listed in the evidence.
