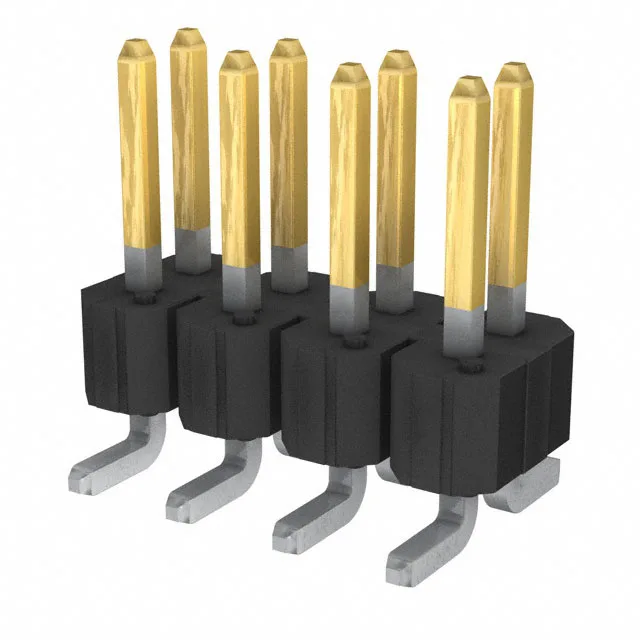

Amphenol ICC (FCI) BERGSTIK® II unshrouded header, 8 positions, 0.100" (2.54mm) pitch, dual-row, surface-mount, male pin, gold mating finish, 3 A rated.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Gender | Male Pin |
| Mounting type | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tape & Reel (TR) |
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 95157-208VLF: Unshrouded male pins with a square contact shape and 0.230" (5.84mm) mating length engage with receptacle contacts for a push-pull fastening.
Surface-mount termination with pick-and-place features allows automated assembly on tape-and-reel packaging. Tin-plated solder tails (post finish) are compatible with standard reflow profiles.
Confirm the circuit count and row configuration on the mating half before ordering.
RoHS compliance is standard for this part number. Verify the specific compliance certificate through the manufacturer's documentation or your sourcing channel.
