95278-101A08 — Amphenol product photo
Amphenol

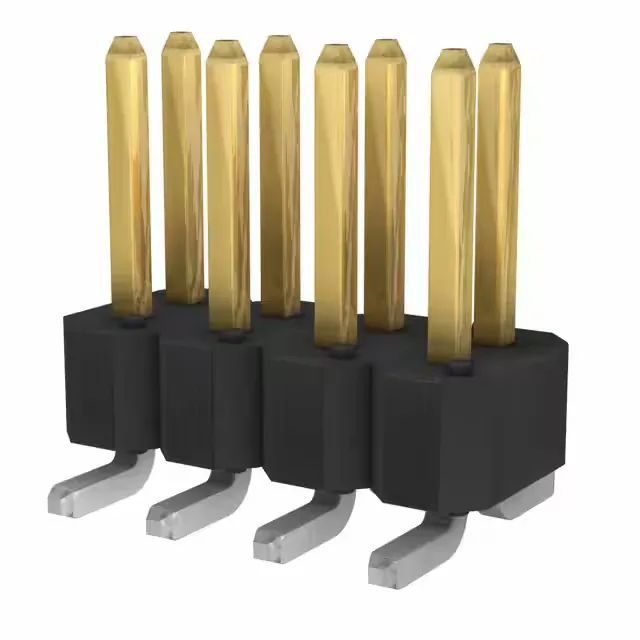

95278-101A08 Amphenol ICC BERGSTIK® Header, 8 Pos, Obsolete

MPN95278-101A08
Obsolete

Amphenol ICC (FCI) BERGSTIK® series, 8-position, 0.100" (2.54 mm) pitch, unshrouded breakaway header, surface mount, gold GXT™ mating finish, Tape & Reel, obsolete

$1.5300Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

95278-101A08 Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating3A per Contact
Operating temperature-65°C~125°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTape & Reel (TR)
FeaturesPick and Place
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact finish - matingGold, GXT™
Contact length - mating0.232\" (5.90mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

8-Position BERGSTIK® Breakaway Header — Obsolete but Sourcable

The insulation material is UL94 V-0 rated thermoplastic, black in color.

Obsolete Status — Sourcing Through Independent Channels

No direct replacement or successor part number is listed on the manufacturer's record. Because this is an end-of-life part, availability is lot-specific and confirmed at quote time. There is no stock-holding claim; each order is sourced against the requested quantity. The Tape & Reel packaging is the original factory format, but quantities may be limited to available surplus lots.

In vibration-prone assemblies, consider a shrouded header or a secondary locking mechanism. The surface-mount termination with solder tails requires a PCB footprint matching the 0.100" row spacing.

Frequently asked questions

Is 95278-101A08 obsolete, and is there a replacement?

Yes, the 95278-101A08 is marked Obsolete by Amphenol ICC (FCI). No direct replacement or successor part number is listed on the manufacturer's record. For a pin-compatible alternative within the BERGSTIK® series, you would need to cross-reference the 0.100" pitch, 8-position, dual-row, unshrouded, surface-mount configuration with gold plating — but no specific order code is documented as a drop-in substitute. We can source the original part through independent channels per RFQ.

What is the pitch and pinout of 95278-101A08?

The pitch is 0.100" (2.54 mm) on both the mating interface and the row spacing. It has 8 positions in a dual-row configuration, with all positions loaded. The contact shape is square male pin, with a mating contact length of 0.232" (5.90 mm).

How can I order 95278-101A08 or check availability?

The 95278-101A08 is obsolete, so it is not stocked as an active inventory item. We source it through independent distribution channels against your BOM quantity.
