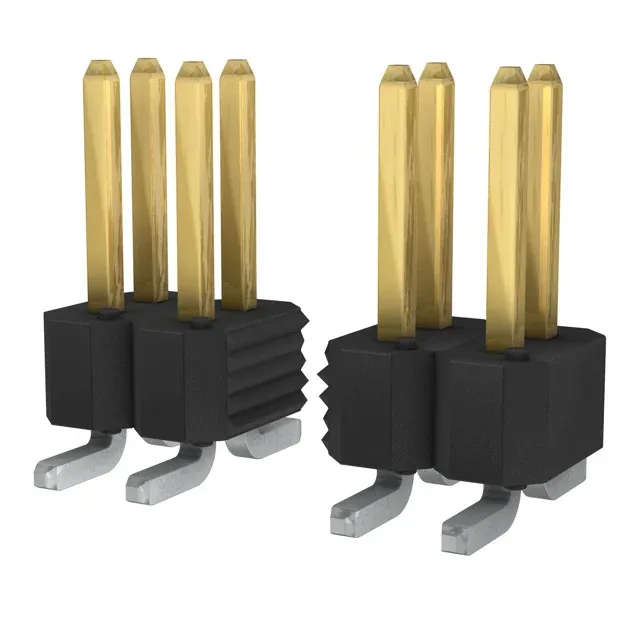

Amphenol ICC (FCI) BERGSTIK header, order code 95278-101A16LF, 16 positions, dual row, 0.100" (2.54 mm) pitch, 3 A per contact, gold GXT mating finish, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Features | Pick and Place |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.232\" (5.90mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 95278-101A16LF is the 16-position dual-row member of Amphenol ICC (FCI)'s BERGSTIK header line, unshrouded with push-pull fastening.
Surface-mount termination with pick-and-place feature supports automated assembly.
Orderable under the listed part number. Available in Tape & Reel or Cut Tape packaging. Request a quote for current pricing and lead time.
The housing carries UL94 V-0 flammability rating. RoHS and REACH compliance documentation is available from the manufacturer upon request.
