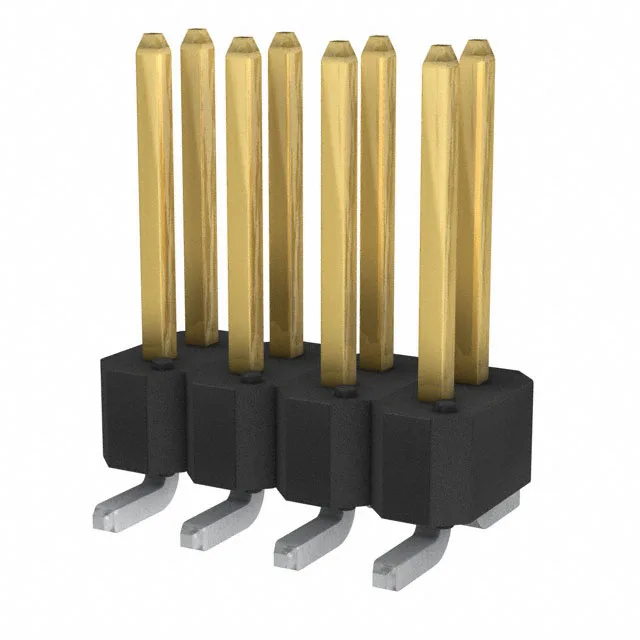

Amphenol ICC (FCI) BERGSTIK® 95278-102-08LF, unshrouded breakaway header, 8 circuits, 2 rows, 0.100" (2.54mm) pitch, SMD termination, gold GXT™ mating finish, 3 A per contact, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.315\" (8.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 95278-102-08LF: Surface-mount termination with tin-plated posts (78.7µin) suits reflow assembly.
The 95278 family includes breakaway headers in the same pitch, plating, and SMD format. The 95278-102-10LF carries 10 positions; the 95278-101-06LF and 95278-101-12LF offer 6 and 12 positions respectively.
Yes.
Availability and current pricing confirmed at quote time.
