95278-103-06LF BERGSTIK Header 6-Pos 2.54mm
MPN95278-103-06LF
Active

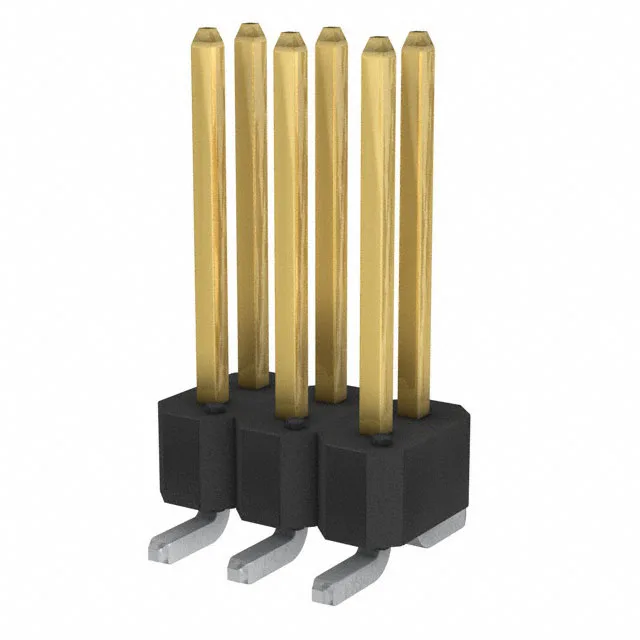

Amphenol FCI BERGSTIK 95278-103-06LF dual-row unshrouded male header, 6 positions, 2.54 mm pitch, surface-mount, gold-plated mating contacts rated 3 A per circuit, tin solder-tail finish, UL94 V-0 thermoplastic, -65 to 125 °C operating temperature.
$0.5503Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.390\" (9.91mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Frequently asked questions
What connector series is the 95278-103-06LF from?
The part is from the Amphenol FCI BERGSTIK series, a long-standing dual-row 2.54 mm pitch header family used in board-to-board interconnects.
