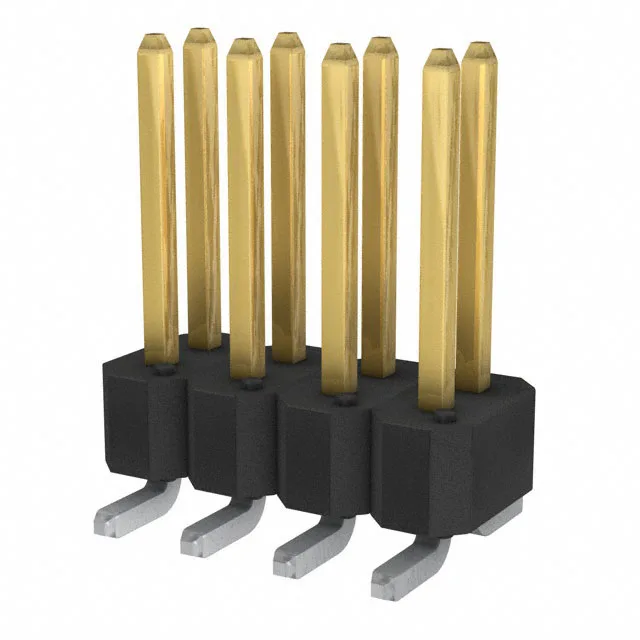

Amphenol ICC (FCI) BERGSTIK® header, order code 95278-110A08LF, 8 positions, dual row, 0.100" (2.54 mm) pitch, 3 A per contact, gold GXT™ mating contacts, surface-mount, solder termination.
Amphenol ICC 95278-110A08LF BERGSTIK Header 8 Pos 2.54mm
MPN95278-110A08LF
Active
Amphenol ICC (FCI) BERGSTIK® header, order code 95278-110A08LF, 8 positions, dual row, 0.100" (2.54 mm) pitch, 3 A per contact, gold GXT™ mating contacts, surface-mount, solder termination.
$0.7312Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tape & Reel (TR) |
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.319\" (8.10mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
