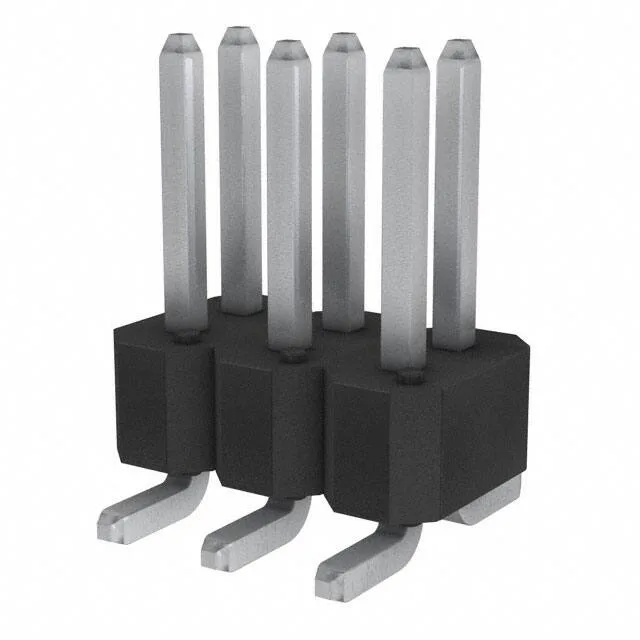

Amphenol ICC (FCI) BERGSTIK® 95278-401A06LF, 6-position unshrouded SMT header, 2.54mm pitch, dual-row, tin-plated male pins, rated 3A per contact, UL94 V-0 thermoplastic housing, -65°C to 125°C.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.232\" (5.90mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
Surface-mount termination with Pick and Place features — the flat top and vacuum-pick area suit automated assembly.
The tin-on-tin contact interface is suited for low-cycle or one-time mate applications; expect 50-100 mating cycles before fretting wear increases resistance. The phosphor bronze contact spring retains its temper across that span.
The connector is a 6-position, dual-row header with all positions loaded. No internal pin-to-pin connections — each pin is an independent circuit.
