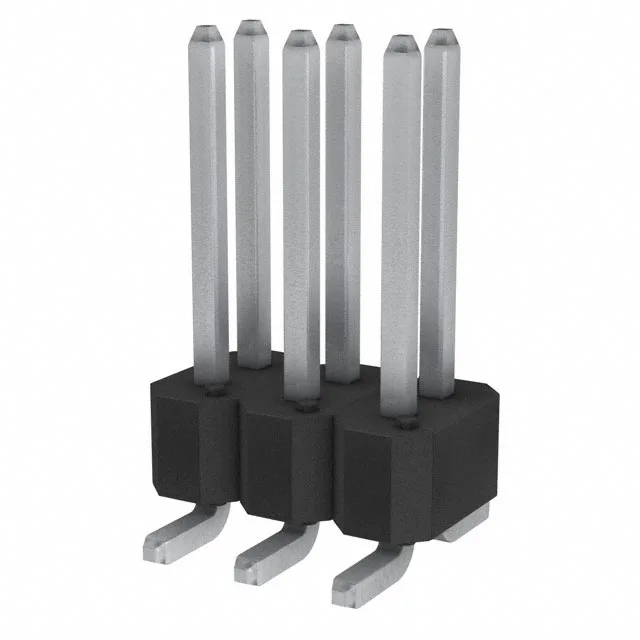

Amphenol ICC BERGSTIK header, order code 95278-411K06LF, 6 positions, dual row, 0.100" (2.54mm) pitch, 3A per contact, tin-plated phosphor bronze contacts, surface-mount solder termination, unshrouded, push-pull mating.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tape & Reel (TR) |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.334\" (8.48mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 95278-411K06LF: The unshrouded design with push-pull fastening gives the board layout engineer direct access to the solder joints for inspection and rework; the surface-mount termination eliminates through-hole clearance on the opposite side.
Sourced and quoted to order against the BOM quantity through independent distribution — availability and current lead time are confirmed at quote time.
The material carries a UL94 V-0 flammability rating; consult the Amphenol ICC product drawer for the full RoHS/REACH declaration and any applicable UL file number for the series.
