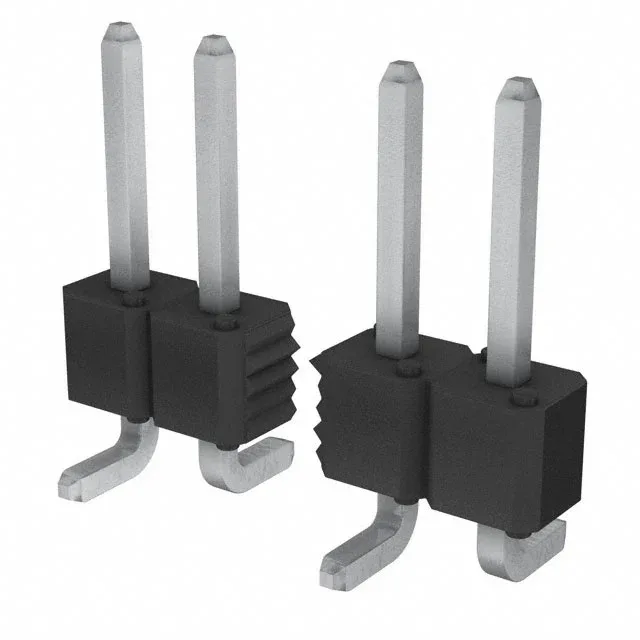

95293-401-16 — Amphenol product photo
Amphenol

95293-401-16 BERGSTIK Header, 16 Pos, 0.100" Pitch, SMT

MPN95293-401-16
Obsolete

Amphenol ICC (FCI) BERGSTIK® unshrouded breakaway header, 16 positions, single row, 0.100" (2.54 mm) pitch, surface mount solder termination, tin-lead plating on both mating and post, UL94 V-0 thermoplastic housing.

$2.0578Ref. price · indicative, final on quote
95293-401-16 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

95293-401-16 Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader, Breakaway
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions16
Contact finish - postTin-Lead
Contact finish - matingTin-Lead
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post150.0µin (3.81µm)
Contact finish thickness - mating150.0µin (3.81µm)

Product details

16-Pin, 0.100" Pitch — BERGSTIK Breakaway Header

The 95293-401-16: Surface mount termination with solder tails — the SMT footprint must match the reflow profile for the tin-lead finish on the post side.

Tin-Lead Plating — Legacy Finish, High-Cycle Duty

Both the mating contact and the solder post carry a 150.0 µinch (3.81 µm) tin-lead finish — a thick, legacy plating that handles repeated mating cycles well, though tin-lead is now uncommon in new designs due to RoHS restrictions.

Obsolete Status — Sourcing Through Independent Channels

The pitch, circuit count, and SMT footprint must match the board layout before committing.

Frequently asked questions

Is 95293-401-16 obsolete?

Yes, 95293-401-16 is listed as Obsolete by Amphenol ICC (FCI). No official replacement part number is published.

What is the pitch and mounting style of 95293-401-16?

The pitch is 0.100" (2.54 mm), and the mounting style is surface mount (SMT) with solder termination. It is a single-row, unshrouded breakaway header with 16 positions, all loaded.
