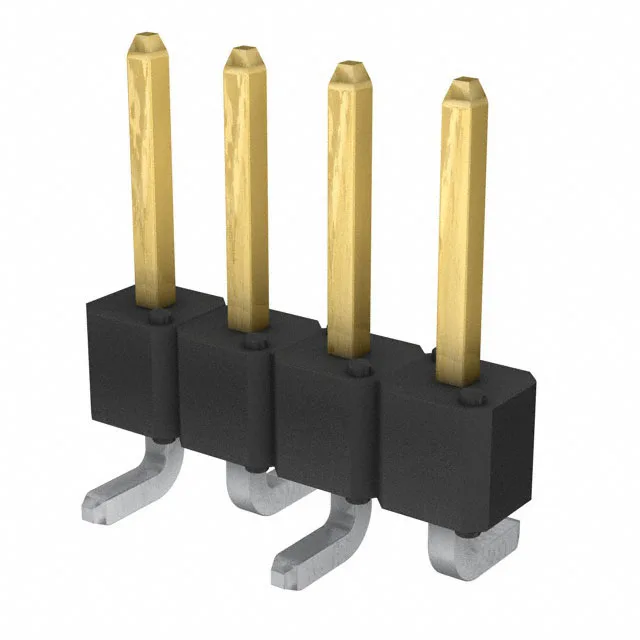

95293-801B04LF BERGSTIK® Header, 4-Pos, 0.100" Pitch, SMT

MPN95293-801B04LF
Active

Amphenol ICC (FCI) BERGSTIK® unshrouded header, 4 circuits, 0.100" (2.54 mm) pitch, surface mount, gold GXT™ mating finish, rated 3 A per contact, -65°C to 130°C.

$0.3858Ref. price · indicative, final on quote
95293-801B04LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

95293-801B04LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C ~ 130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.100\" (2.54mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
FeaturesPick and Place
PackageTube
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions4
Contact finish - postTin
Contact finish - matingGold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

4-Pin BERGSTIK® Header for Board-to-Board Interconnects

The 95293-801B04LF: It is designed for board-to-board applications where a compact, low-profile interconnect is needed. The tin-plated solder tails (78.7 µinch) ensure good solderability during reflow.

Surface Mount Termination and Pick-and-Place Ready

This header uses surface mount termination, making it suitable for automated assembly. The pick-and-place feature and tube packaging support high-volume manufacturing without extra handling steps.

Mating and Board Layout Considerations

The 4 positions are all loaded, so no optional pin removal is needed. For a board-to-board connection, the mating half is a BERGSTIK® socket or a compatible 0.100" pitch receptacle. The unshrouded header requires the receptacle to provide guidance and retention.

Frequently asked questions

What is the mating part for 95293-801B04LF?

The mating half must provide the guidance and retention since the header has no shroud or latch.

Does 95293-801B04LF come in tape and reel packaging?

No, this part is packaged in tube.

How can I order 95293-801B04LF or check stock?

Availability and current pricing confirmed at quote time.
