It uses a standard 0.100" (2.54 mm) pitch on both rows and contacts, which means it drops onto a 0.100" grid perf-board or a standard DIP IC footprint without any layout adjustment. The through-hole solder tails are 0.360" (9.14 mm) long, giving enough protrusion for a standard 0.062" board with room for a solder fillet.

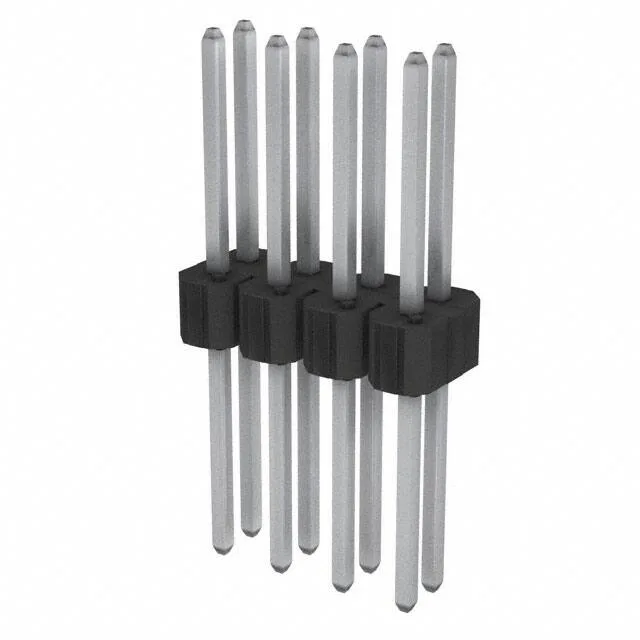

FCI BERGSTIK® II, 8 Position, 2 Row, 0.100" (2.54mm) Pitch, Through Hole, Unshrouded Header, Tin Mating Finish, 5 A, 110 V.
$1.5300Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 110V |
| Current rating | 5A |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.360\" (9.14mm) |
| Overall contact length | 0.820\" (20.83mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.360\" (9.14mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
Is 95687-408HLF RoHS compliant?
The 95687-408HLF uses tin plating on both the mating and post surfaces, which is RoHS-compliant. No halogen or restricted substances are listed in the material set.
