Amphenol ICC (FCI) BERGSTIK header, order code 98400-102ALF, 8 positions, single row, 0.100" (2.54 mm) pitch, gold GXT mating contacts, tin-plated posts, surface-mount, solder termination, unshrouded.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tape & Reel (TR) |
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.232\" (5.90mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 98400-102ALF is the 8-position member of Amphenol ICC's BERGSTIK breakaway header line, with 7 positions loaded.

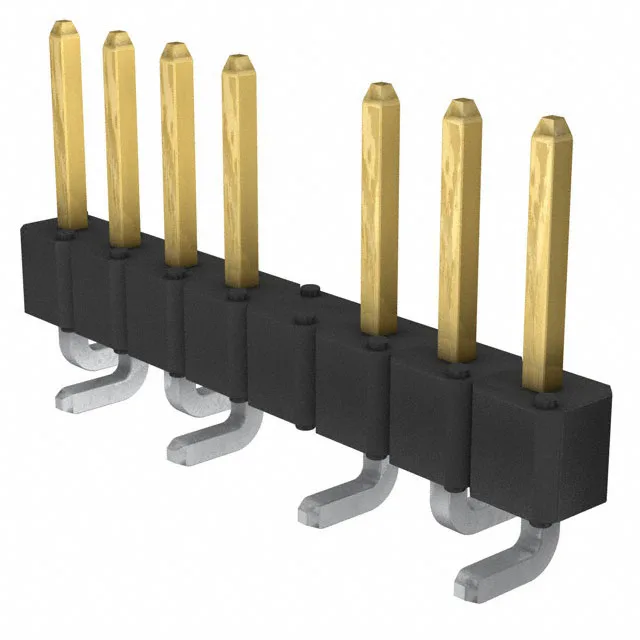

The header is supplied with 8 positions in a single row, but only 7 positions are loaded with pins — the empty position accommodates a keying or polarization feature in the mating receptacle.
The 98400-102ALF is a 7-loaded-position variant of the 8-position BERGSTIK header. A fully populated 8-position version (98400-101ALF) is available within the same series, sharing the same pitch, plating, and SMT footprint.
