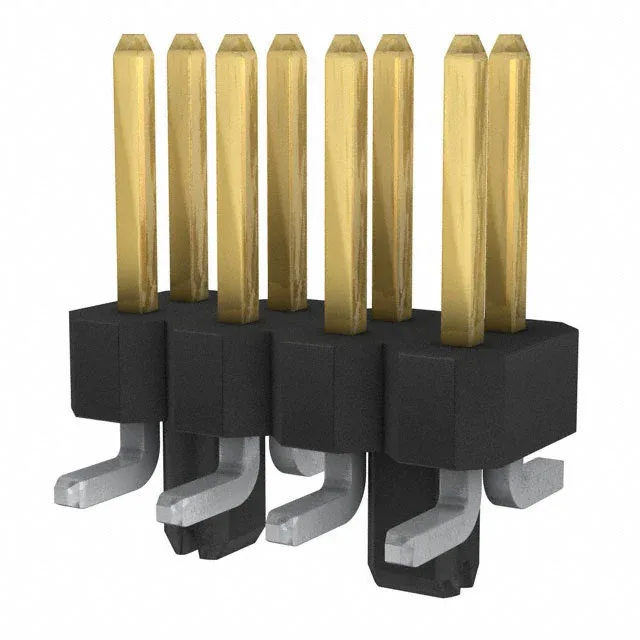

Amphenol ICC (FCI) BERGSTIK® 98401-101-08LF, 8-position, 2-row, unshrouded SMD header, 0.100" (2.54 mm) pitch, gold GXT™ mating finish, 3 A, UL94 V-0, Active.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.084\" (2.14mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Features | Board Guide |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 95278-101-46LF shares the same 0.100" pitch, 2-row layout, gold GXT mating finish, and 3 A rating — the only difference is position count: 46 circuits vs 8. The 98401-402A12LF (12 positions) uses tin mating finish instead of gold — a cost trade-off if your application doesn't need the cycle life.
The 95278-101-46LF is a higher-position sibling (46 circuits) with identical pitch, plating, and current rating. For a lower-cost option with fewer mating cycles, the 98401-402A12LF (12 positions) uses tin mating finish instead of gold GXT.
