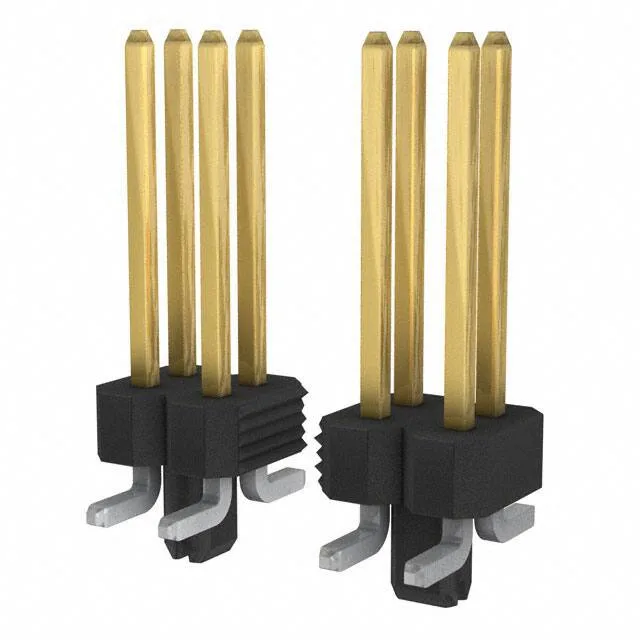

Amphenol ICC (FCI) BERGSTIK® header, order code 98401-106-10LF, 10 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold GXT™ mating contacts, surface-mount, unshrouded, solder termination.
Amphenol ICC (FCI) 98401-106-10LF BERGSTIK Header
MPN98401-106-10LF
Active
Amphenol ICC (FCI) BERGSTIK® header, order code 98401-106-10LF, 10 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, gold GXT™ mating contacts, surface-mount, unshrouded, solder termination.
$1.0400Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.084\" (2.14mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Features | Board Guide |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.413\" (10.50mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation is available for the 98401-106-10LF?
The header uses a UL94 V-0 rated thermoplastic insulator. RoHS/REACH compliance documentation is provided by Amphenol ICC (FCI) upon request.
What is the closest pin-compatible alternative in the BERGSTIK series?
No direct pin-compatible drop-in with identical position count is listed.
