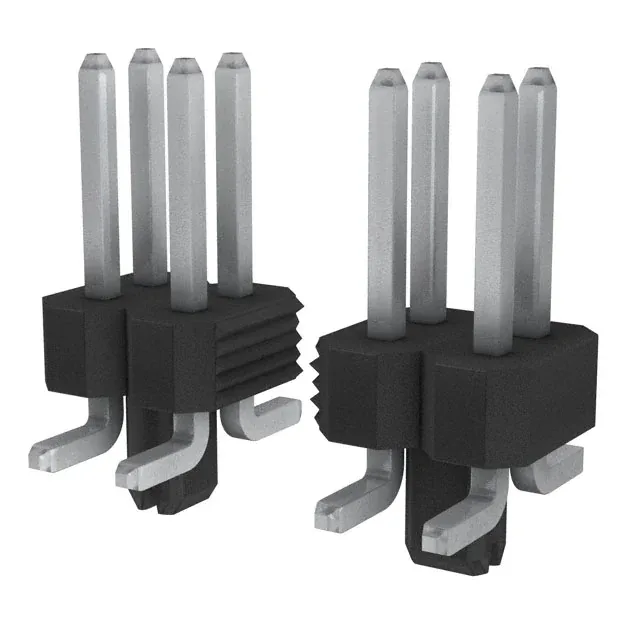

Amphenol BERGSTIK® 98401-401-10 Header 10-Pos 2.54mm Pitch
Amphenol Communications Solutions BERGSTIK® 98401-401-10, 10-position dual-row 0.100" (2.54mm) pitch header, surface-mount, male pin, tin-lead contact finish 150 µin, thermoplastic black insulation, UL94 V-0, bulk.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.084\" (2.14mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
Frequently asked questions
Where can I source the 98401-401-10 and how is it quoted for volume purchases?
The part is sourced to order against the BOM quantity through independent distribution, with availability and current pricing confirmed at quote time — no stock-holding or spot-price claim is made. Volume quotes are issued against the RFQ quantity.
What connector series does the 98401-401-10 belong to?
The 98401-401-10 is a member of the BERGSTIK® series from Amphenol Communications Solutions — a dual-row, 0.100" (2.54 mm) pitch header family used in board-to-board interconnects across industrial and communications equipment.
What is the contact plating on the 98401-401-10?
Both the mating face and the solder tail carry tin-lead plating at 150 µin (3.81 µm) — a heavier deposit than thin-flash tin, which gives better fretting resistance in limited-reconnect applications.
