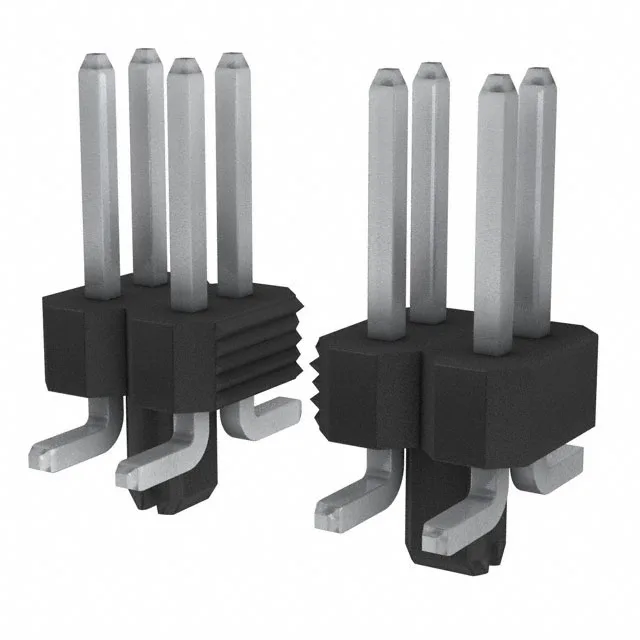

Amphenol ICC (FCI) BERGSTIK header, order code 98401-401A10LF, 10 positions, dual row, 0.100" (2.54mm) pitch, 3 A, tin-plated mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.084\" (2.14mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tape & Reel (TR) |
| Features | Board Guide, Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
The 98401-401A10LF: Tin-plated mating contacts are rated 3 A per position, and the surface-mount solder termination suits automated pick-and-place assembly with the integrated board guide and pick-and-place feature.
The 98401-401A10LF is orderable through Amphenol ICC (FCI) distribution channels. Request a quote for current pricing and availability.
The 98401-401A10LF is the 10-position variant; a 6-position (98401-406A10LF) or 14-position (98401-414A10LF) are direct parametric neighbours with identical plating and mounting.
Amphenol ICC (FCI) provides a datasheet and RoHS/REACH compliance declarations for the BERGSTIK series. The UL94 V-0 flammability rating of the thermoplastic insulator is listed in the spec table.
