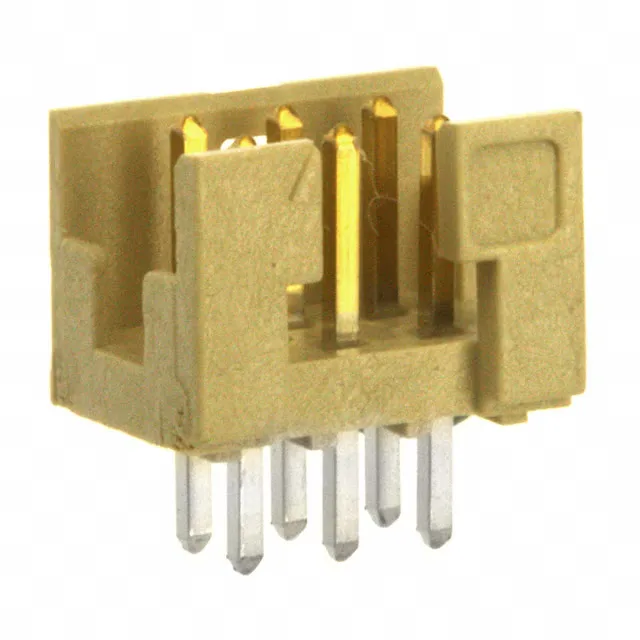

98414-G06-06ULF — Amphenol product photo
Amphenol

98414-G06-06ULF Minitek 2.00mm Header – 6-Pin, Gold, Latch

MPN98414-G06-06ULF
Active

Amphenol ICC (FCI) Minitek® 2.00mm header, 98414-G06-06ULF, 6 circuits, dual-row, 2.00 mm pitch, through-hole solder, shrouded 4-wall, latch holder, gold GXT™ mating finish, cream insulation, UL94 V-0, RoHS.

$1.3300Ref. price · indicative, final on quote
98414-G06-06ULF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

98414-G06-06ULF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorCream
Insulation height0.232\" (5.90mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions6
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.098\" (2.50mm)
Contact finish - matingGold, GXT™
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

6-Pin Shrouded Header with Latch – 2.00 mm Pitch

Keying Slot and Mis-Mate Prevention

A keying slot in the shroud ensures that only a matching keyed receptacle can be mated — a safeguard against wiring errors in panels with multiple Minitek 2.00mm connectors. The keying slot is a physical polarisation feature, not just a colour band.

The 98414-G06-06ULF is the 6-position member of the 98414 family. The body width scales with position count, so the footprint grows by 2.00 mm per additional circuit pair.

Frequently asked questions

What is the mating connector for 98414-G06-06ULF?

The keying slot on the header pairs with a keyed receptacle — verify the receptacle part number against your harness drawing.

Does 98414-G06-06ULF have a keying slot?

Yes — a keying slot is integrated into the shroud. It prevents mating with non-keyed receptacles, reducing wiring errors in multi-connector assemblies.
