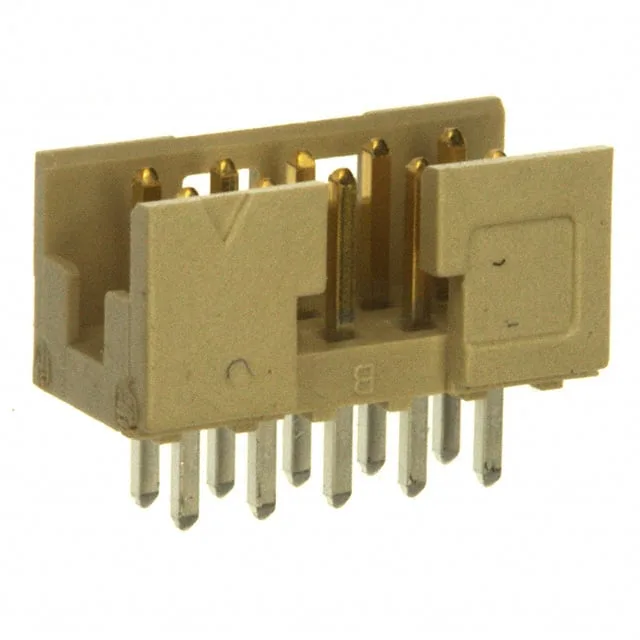

Amphenol ICC (FCI) Minitek® 2.00mm header, order code 98414-G06-10ULF, 10 positions, dual row, 2.00 mm pitch, 2 A, 200 V, gold GXT™ mating finish, through-hole, solder termination.
Amphenol 98414-G06-10ULF Minitek 2.00mm Header, 10 Pos
MPN98414-G06-10ULF
Active
Amphenol ICC (FCI) Minitek® 2.00mm header, order code 98414-G06-10ULF, 10 positions, dual row, 2.00 mm pitch, 2 A, 200 V, gold GXT™ mating finish, through-hole, solder termination.
$1.4000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMinitek® 2.00mm
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Cream |
| Insulation height | 0.232\" (5.90mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation does Amphenol ICC (FCI) provide for 98414-G06-10ULF?
RoHS compliance is confirmed.
What is the listed style of 98414-G06-10ULF?
Board to Board or Cable.
