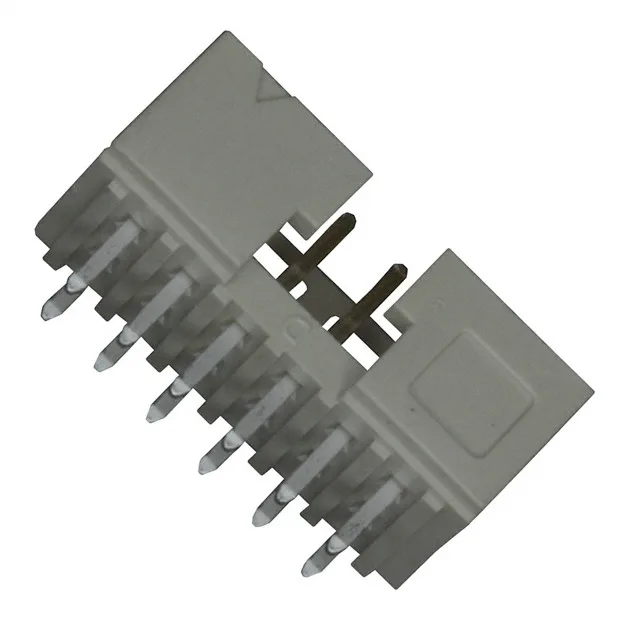

98414-G06-12LF — Amphenol product photo
Amphenol

98414-G06-12LF Amphenol ICC Minitek 2.00mm Header, 12 Pos

MPN98414-G06-12LF
Active

Amphenol ICC (FCI) Minitek® 2.00mm header, 12 positions, dual-row, shrouded, through-hole, gold GXT™ mating finish, latch holder, 2 A, 200 V, RoHS, bulk.

$2.1200Ref. price · indicative, final on quote
98414-G06-12LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

98414-G06-12LF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorCream
Insulation height0.232\" (5.90mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions12
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.098\" (2.50mm)
Contact finish - matingGold, GXT™
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

2.00 mm pitch, 12-position shrouded header — the fit check

The latch holder fastening provides a positive lock against vibration-induced disconnect, making it suitable for equipment with moving parts or transport shock.

12 circuits vs 10 circuits — position count choice

Compared to the 10-position sibling 98414-G06-10LF, this 12-position version adds two circuits in the same dual-row, 2.00 mm pitch layout. All other key specs — 2 A current, 200 V voltage, gold GXT™ plating, latch holder, shrouded 4-wall design — are identical. The 12-position version is also available in tube packaging as 98414-G06-12ULF; this bulk-pack variant (98414-G06-12LF) is the same connector with loose-piece handling for lower-volume or automated assembly.

Frequently asked questions

What is the mating connector for 98414-G06-12LF?

This shrouded header mates with a Minitek 2.00mm receptacle housing (female) that accepts the matching crimp terminals. The latch holder on the header locks with the corresponding latch on the receptacle.

Does 98414-G06-12LF have a locking latch?

Yes, it has a latch holder fastening type that provides a positive lock against vibration-induced disconnect.
