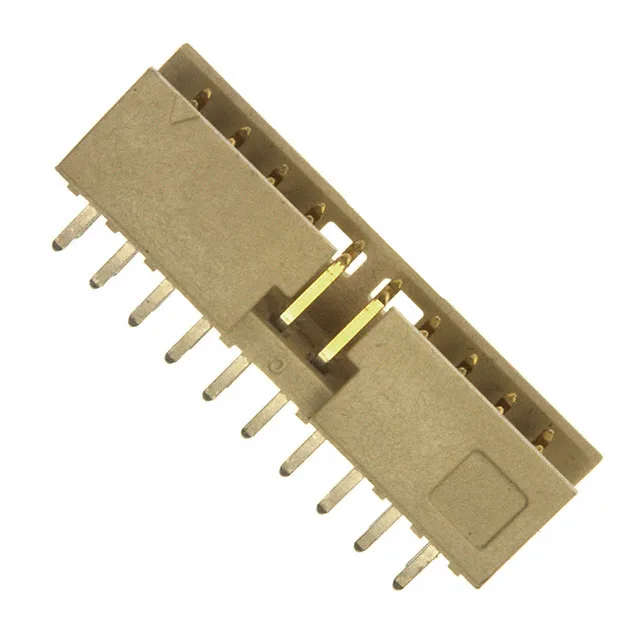

98414-G06-20LF — Amphenol product photo
Amphenol

98414-G06-20LF Amphenol ICC Minitek 2.00mm Header, 20 Pos

MPN98414-G06-20LF
Active

Amphenol ICC (FCI) Minitek® 2.00mm header, 98414-G06-20LF, 20 positions, 2 rows, 0.079" pitch, shrouded 4-wall, latch holder, through-hole solder, gold GXT mating finish, 2A, 200V, UL94 V-0.

$1.9400Ref. price · indicative, final on quote
98414-G06-20LF datasheet
StockContact for availability
Lead time3-5 Days wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

98414-G06-20LF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeLatch Holder
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorCream
Insulation height0.232\" (5.90mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageBulk
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions20
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.098\" (2.50mm)
Contact finish - matingGold, GXT™
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 0.079" (2.00mm) pitch and 0.079" row spacing set the PCB footprint for a compact, high-density layout — the 20 positions fill a board edge without crowding adjacent components.

The 98414-G06-20LF shares its 2.00mm pitch, dual-row layout, gold GXT plating, and latch holder with the 12-position (98414-G06-12LF) and 22-position (98414-G06-22LF) siblings — the only difference is the number of circuits populated. If your BOM calls for 22 circuits instead of 20, the 98414-G06-22LF is a drop-in replacement on the same 2.00mm grid, with the same 2A rating and shrouded profile.

This header mates with Minitek 2.00mm receptacle housings and IDC cable assemblies that accept the same 0.079" pitch and dual-row pin pattern. The keying slot prevents mismating with non-keyed headers, and the latch holder locks the cable-side connector in place — no secondary retention hardware needed.

Frequently asked questions

Where can I buy 98414-G06-20LF?

The 98414-G06-20LF is sourced through independent distribution channels.

What is the closest functional alternative to 98414-G06-20LF?

The 98414-G06-22LF is the closest sibling — same pitch, same gold GXT plating, same latch holder, but with 22 positions instead of 20. If your board layout can accommodate two extra circuits, it is a direct swap.
