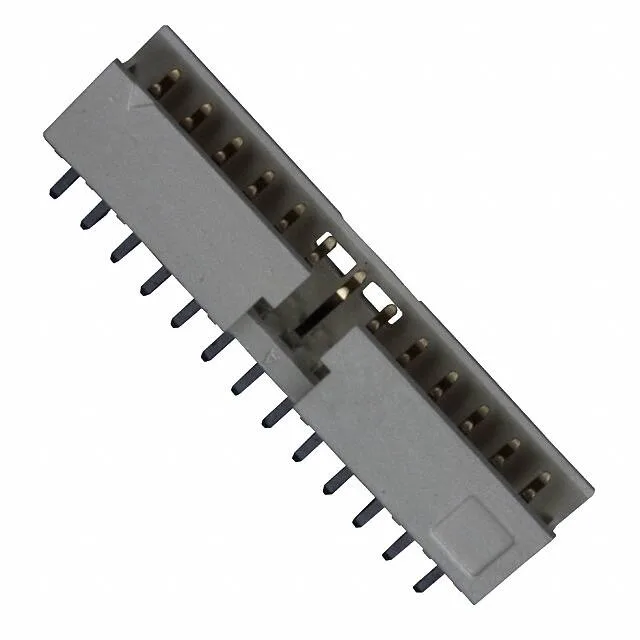

Amphenol ICC (FCI) Minitek® 2.00mm header, order code 98414-G06-26LF, 26 positions, dual row, 0.079" (2.00mm) pitch, 2A (AC/DC), 200V (AC/DC), gold GXT™ mating contacts, through-hole, solder termination, shrouded - 4 wall.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Cream |
| Insulation height | 0.232\" (5.90mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 26 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 98414-G06-26LF is a 26-circuit member of the Amphenol ICC (FCI) Minitek 2.00mm header line, a dual-row shrouded board-to-board or cable interconnect. It carries gold GXT mating contacts rated 2A (AC/DC) at 200V (AC/DC) and mounts through-hole with solder termination.
Yes, the header includes a keying slot to prevent mis-mating.
