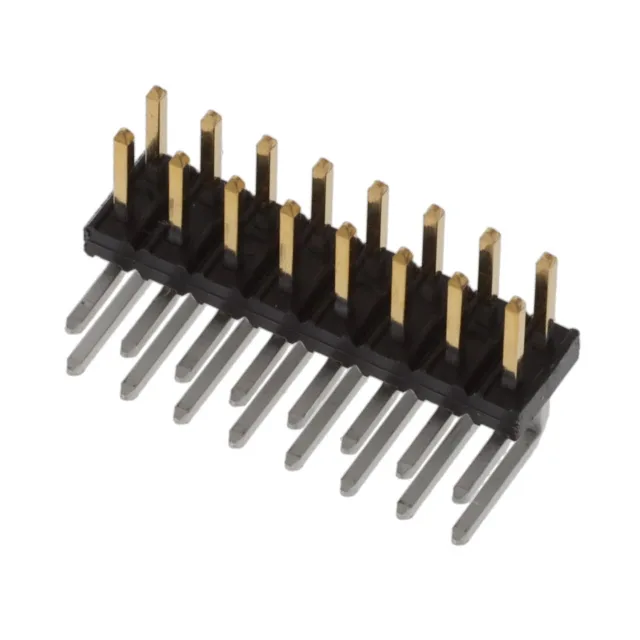

98423-F61-08ULF — Amphenol product photo
Amphenol

98423-F61-08ULF Amphenol ICC Minitek 2.00mm Header, 16 Pos

MPN98423-F61-08ULF
Active

Amphenol ICC (FCI) Minitek® 2.00mm series, 16-position, dual-row, unshrouded male header, through-hole right-angle termination, gold flash on mating contacts, rated 2 A per contact at 200 V.

$2.6600Ref. price · indicative, final on quote
98423-F61-08ULF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

98423-F61-08ULF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.157\" (4.00mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageTube
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions16
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.098\" (2.50mm)
Contact finish - matingGold
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - matingFlash

Product details

Gold Flash Mating Surface, Tin Post — Signal-Duty Contact Set

Gold flash provides a low-resistance interface without the cost of thicker gold, but it does not carry the cycle life of a 15 µinch or 30 µinch deposit. The solder post is tin-plated (78.7 µinch), which is the standard finish for through-hole solder joints and is compatible with lead-free reflow profiles.

The standard package is tube. The base product number is 98423; the full suffix 98423-F61-08ULF specifies the gold flash plating, right-angle orientation, and tube packaging. The insulation material is UL94 V-0 rated thermoplastic, black.

Frequently asked questions

What is the mating connector for 98423-F61-08ULF?

This unshrouded header mates with a Minitek 2.00mm dual-row receptacle (female socket) of the same 16-position, 2-row layout.
